Side frame section, inner for BMW 2 Series F74 Gran Coupé 218 (2025)

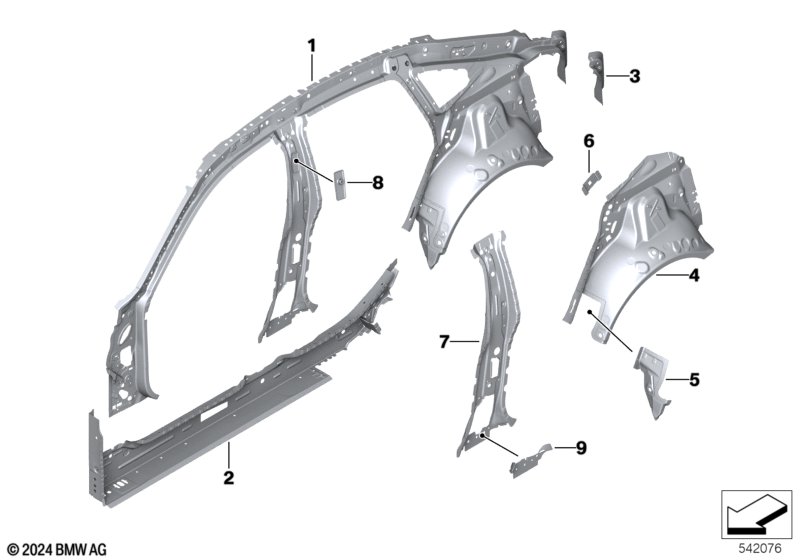

This Side frame section, inner technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 218. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left interior side frame | 1 | 41205A65D83 | NoS | Shop at ECS Tuning | |||||
| 01 | Right interior side frame | 1 | 41205A65D84 | NoS | Shop at ECS Tuning | |||||
| 02 | Side member, inner left | 1 | 41007955469 | NoS | Shop at ECS Tuning | |||||
| 02 | Side member, inner right | 1 | 41007955470 | NoS | Shop at ECS Tuning | |||||
| 03 | Reinforcement rear light housing left | 1 | 41219498419 | Shop at ECS Tuning | ||||||
| 03 | Reinforcement rear light housing right | 1 | 41219498420 | Shop at ECS Tuning | ||||||
| 04 | Wheelwell rear outer left | 1 | 41145A65D91 | NoS | Shop at ECS Tuning | |||||
| 04 | Radhaus hinten außen rechts | 1 | 41145A65D92 | NoS | Shop at ECS Tuning | |||||
| 05 | End panel, wheelhousing, outer left | 1 | 41205A84B85 | NoS | Shop at ECS Tuning | |||||
| 05 | End panel, wheelhousing, outer right | 1 | 41205A84B86 | NoS | Shop at ECS Tuning | |||||
| 06 | Bracket DWA | 1 | 41007284325 | Shop at ECS Tuning | ||||||
| 07 | Interior left column B | 1 | 41215A65D85 | NoS | Shop at ECS Tuning | |||||
| 07 | Column B inside right | 1 | 41215A65D86 | NoS | Shop at ECS Tuning | |||||
| 08 | Reinforcement belt deflector support | 1 | 41009631315 | NoS | Shop at ECS Tuning | |||||
| 09 | Reinforcement for B-pillar, lower left | 1 | 41205A81AA5 | NoS | Shop at ECS Tuning | |||||
| 09 | Reinforcement for B-pillar, lower right | 1 | 41205A81AA6 | NoS | Shop at ECS Tuning |
Notes
- NoS = No Stock (Part centrally not stocked)
