Cavity sealings for BMW 2 Series F74 Gran Coupé 228 (2025)

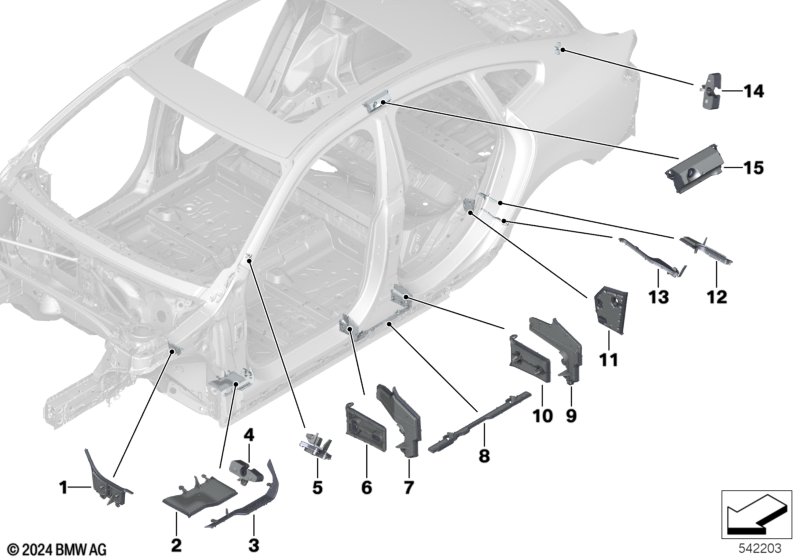

This Cavity sealings technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 228. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Shaped part, bracket, axle mount | 1 | 41117301901 | Shop at ECS Tuning | ||||||
| 02 | Molded part column A, bottom int. left | 1 | 41007434667 | NoS | Shop at ECS Tuning | |||||
| 02 | Molded part column A, bottom int. right | 1 | 41007434668 | NoS | Shop at ECS Tuning | |||||
| 03 | Molded part column A, bottom ext. left | 1 | 41007434669 | Shop at ECS Tuning | ||||||
| 03 | Molded part column A, bottom ext. right | 1 | 41007434670 | Shop at ECS Tuning | ||||||
| 04 | Moulded part | 4 | 41217451717 | Shop at ECS Tuning | ||||||
| 05 | Molded part column A, top interior left | 1 | 41009491781 | Shop at ECS Tuning | ||||||
| 05 | Molded part column A,top interior right | 1 | 41009491782 | Shop at ECS Tuning | ||||||
| 06 | Shaped part, B-pillar, ft.LT. / rear RT. | 1 | 41219650397 | NoS | Shop at ECS Tuning | |||||
| 07 | Moulded part,entrance outside,front left | 1 | 41009482607 | NoS | Shop at ECS Tuning | |||||
| 07 | Moulded part,entrance outside,front rig. | 1 | 41009482608 | NoS | Shop at ECS Tuning | |||||
| 08 | Moulded part,entrance outside,front left | 1 | 41007434715 | NoS | Shop at ECS Tuning | |||||
| 08 | Moulded part,entrance outside,front rig. | 1 | 41007434716 | NoS | Shop at ECS Tuning | |||||
| 09 | Moulded part,entrance outside,rear left | 1 | 41007434717 | NoS | Shop at ECS Tuning | |||||
| 09 | Moulded part,entrance outside,rear right | 1 | 41007434718 | NoS | Shop at ECS Tuning | |||||
| 10 | Shaped part, B-pillar, ft.RT. / rear LT. | 1 | 41219650398 | NoS | Shop at ECS Tuning | |||||
| 11 | Molded section, side member, left | 1 | 41117287135 | Shop at ECS Tuning | ||||||
| 11 | Molded section, side member, right | 1 | 41117287136 | Shop at ECS Tuning | ||||||
| 12 | Shaped part f.C-pillar inner bottom left | 1 | 41007434699 | NoS | Shop at ECS Tuning | |||||
| 12 | Shaped part f.C-pillar inner bottom ri. | 1 | 41007434700 | NoS | Shop at ECS Tuning | |||||
| 13 | Shaped part f.C-pillar outer bottom left | 1 | 41007473825 | Shop at ECS Tuning | ||||||
| 13 | Shaped part f.C-pillar outer bottom ri | 1 | 41007473826 | Shop at ECS Tuning | ||||||
| 14 | Moulded part | 4 | 41217451717 | Shop at ECS Tuning | ||||||
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 15 | Shap part, roof frame, ctr outer left | 1 | 41225A46C05 | NoS | Shop at ECS Tuning | |||||
| 15 | Shap part, roof frame, ctr outer right | 1 | 41225A46C06 | NoS | Shop at ECS Tuning | |||||
