Rear wheelhouse/floor parts for BMW 2 Series F78 Gran Coupé 225L (2025)

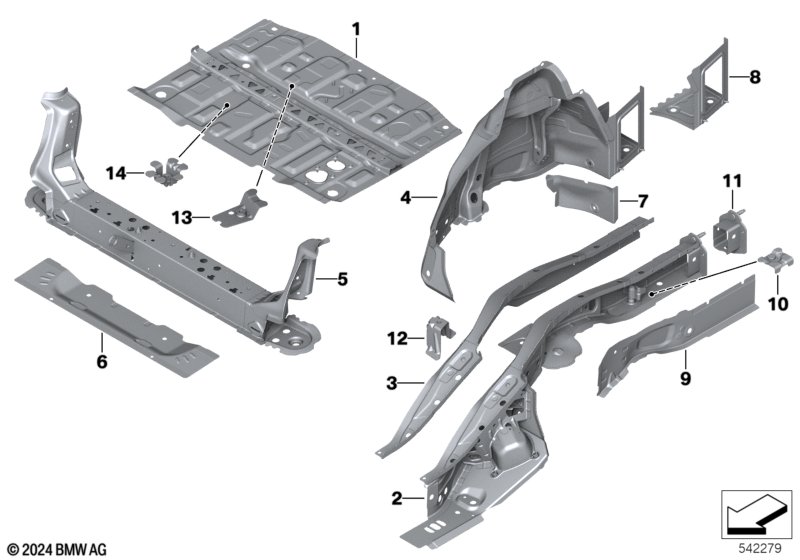

This Rear wheelhouse/floor parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F78 Gran Coupé 225L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk floor | 1 | 41128465688 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Acoustic panel | 1 | 41007453095 | Shop at ECS Tuning | ||||||
| 03 | Side member, top left | 1 | 41007402383 | Shop at ECS Tuning | ||||||
| 03 | Side member, top right | 1 | 41007402384 | Shop at ECS Tuning | ||||||
| 04 | Rear left wheelhouse | 1 | 41009883555 | NoS | Shop at ECS Tuning | |||||
| 04 | Rear right wheelhouse | 1 | 41009883556 | NoS | Shop at ECS Tuning | |||||
| 05 | Cross member, trunk floor, front top | 1 | 41009850497 | NoS | Shop at ECS Tuning | |||||
| 06 | Cross member, differential mount, lower | 1 | 41007408605 | Shop at ECS Tuning | ||||||
| 07 | Extension for rear left wheel well | 1 | 41007439039 | Shop at ECS Tuning | ||||||
| 07 | Extension for rear right wheel well | 1 | 41007439040 | Shop at ECS Tuning | ||||||
| 08 | Trunk floor left | 1 | 41009449449 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 11 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 6 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Coarse-thread stud | L=14,2MM | 1 | 07147133425 | Shop at ECS Tuning | |||||
| -- | Threaded weld bolt with scrape point | M6X22 | 2 | 07149265198 | Shop at ECS Tuning | |||||
| 08 | Trunk floor right | 1 | 41009449450 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 11 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Screw | SF PLUS M5X15 | 2 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Punch rivet | N4 | 6 | 83192158080 | $0.39 | ENDED | Shop at ECS Tuning | |||
| -- | Body adhesive K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Sealant D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Cleanser R2 | 500ML | 1 | 83195B67072 | Shop at ECS Tuning | |||||
| -- | Coarse-thread stud | L=14,2MM | 4 | 07147133425 | Shop at ECS Tuning | |||||
| -- | Threaded weld bolt with scrape point | M6X22 | 2 | 07149265198 | Shop at ECS Tuning | |||||
| 09 | End plate, side member, left | 1 | 41117434917 | Shop at ECS Tuning | ||||||
| 09 | End plate, side member, right | 1 | 41117434918 | Shop at ECS Tuning | ||||||
| 10 | Bracket for exhaust system | 2 | 41007408606 | Shop at ECS Tuning | ||||||
| 11 | Mount, bumper left | 1 | 41117402665 | Shop at ECS Tuning | ||||||
| 11 | Mount, bumper right | 1 | 41117402666 | Shop at ECS Tuning | ||||||
| 12 | Holder, backrest, left | 1 | 41009621213 | NoS | Shop at ECS Tuning | |||||
| 12 | Holder, backrest, right | 1 | 41009621214 | NoS | Shop at ECS Tuning | |||||
| 13 | Mount for SCR container | 1 | 41007441209 | NoS | Shop at ECS Tuning | |||||
| 14 | Mount for SCR tank, large | 1 | 41007445162 | NoS | Shop at ECS Tuning | |||||
