Side panel/tail trim for BMW 2 Series F74 Gran Coupé 228 (2025)

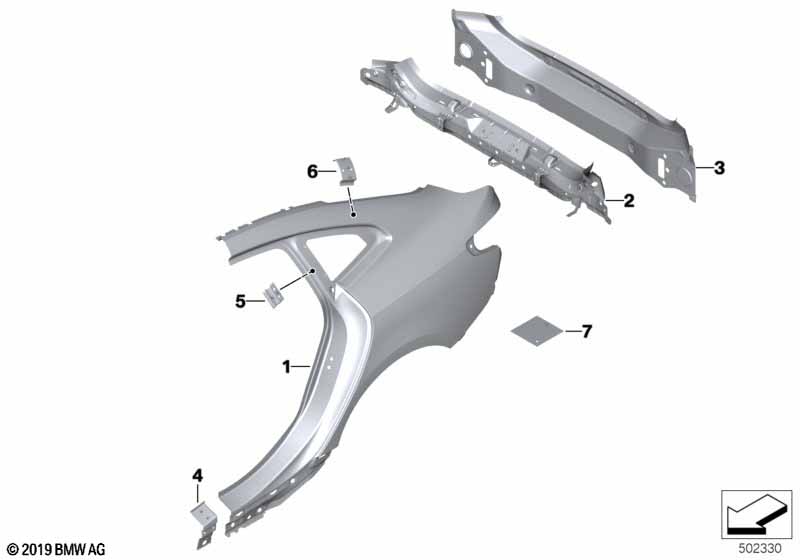

This Side panel/tail trim technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 228. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear side panel | 1 | 41305A65DB1 | Shop at ECS Tuning | ||||||
| 01 | Right rear side panel | 1 | 41305A65DB2 | Shop at ECS Tuning | ||||||
| 02 | Interior tail trim | 1 | 41345B4A5C1 | Shop at ECS Tuning | ||||||
| only in conjunction with | ||||||||||
| -- | Outer panel tail trim | 1 | 41345B4A5B9 | Shop at ECS Tuning | ||||||
| 03 | Outer panel tail trim | 1 | 41345B4A5B9 | Shop at ECS Tuning | ||||||
| 04 | Reinforcement plate, rocker panel, left | 1 | 41009466215 | Shop at ECS Tuning | ||||||
| 04 | Reinforcement plate, rocker panel, right | 1 | 41009466216 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement plate, C-pillar, left | 1 | 41009466217 | Shop at ECS Tuning | ||||||
| 05 | Reinforcement plate, C-pillar, right | 1 | 41009466218 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement plate, D-pillar, left | 1 | 41009466219 | Shop at ECS Tuning | ||||||
| 06 | Reinforcement plate, D-pillar, right | 1 | 41009466220 | Shop at ECS Tuning | ||||||
| 07 | Reinforcement plate, universal | X | 41217275563 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F74 Gran Coupé 228 Side panel/tail trim?
- This technical diagram illustrates the Side panel/tail trim within the Bodywork group for the 2 Series F74 Gran Coupé 228 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Left rear side panel (Part #41305A65DB1).
- Which models use the hardware listed in this Side panel/tail trim?
- The hardware and components featured in the Side panel/tail trim are specific to the 2 Series F74 Gran Coupé 228 produced during 2025. These technical specifications ensure that parts like the Left rear side panel (41305A65DB1) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Side panel/tail trim assembly?
- Each item in the Side panel/tail trim corresponds to the numbered list below the illustration. For the 2 Series F74 Gran Coupé 228, you can identify the Left rear side panel by locating its position on the schematic, which then links to the official BMW part number 41305A65DB1 for the Bodywork section.
