Front side panel for BMW 5 Series G90 M5 M5 (2025)

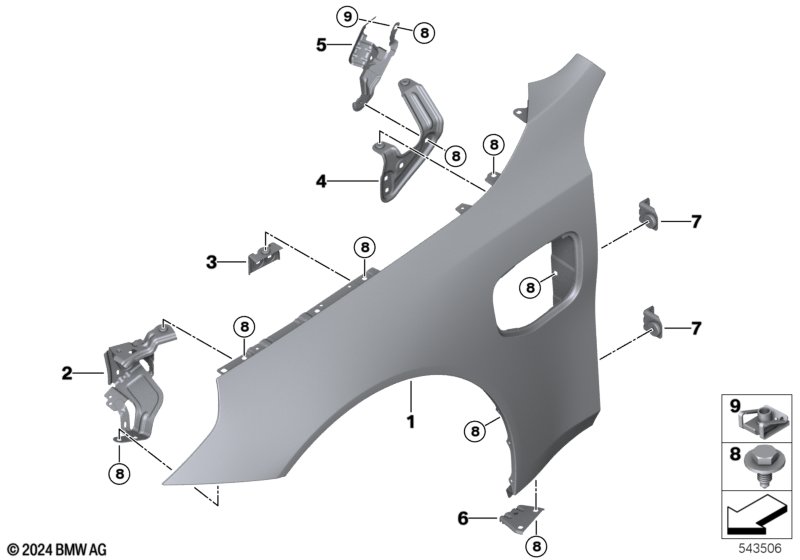

This Front side panel technical drawing provides a detailed breakdown of the assembly for the 5 Series G90 M5 M5. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side panel, aluminum, front left | 1 | 41357907841 | Shop at ECS Tuning | ||||||
| 01 | Side panel, aluminum, front right | 1 | 41357907842 | Shop at ECS Tuning | ||||||
| 02 | Holder side panel left front 1 | 1 | 41359633633 | Shop at ECS Tuning | ||||||
| 02 | Holder side panel right front 1 | 1 | 41359633634 | Shop at ECS Tuning | ||||||
| 03 | Holder side panel left front 2 | 1 | 41359633635 | Shop at ECS Tuning | ||||||
| 03 | Holder side panel right front 2 | 1 | 41359633636 | Shop at ECS Tuning | ||||||
| 04 | Holder side panel left front 3 | 1 | 41359633637 | Shop at ECS Tuning | ||||||
| 04 | Holder side panel right front 3 | 1 | 41359633638 | Shop at ECS Tuning | ||||||
| 05 | Side panel bracket, front left 4 | 1 | 41215A37B55 | Shop at ECS Tuning | ||||||
| 05 | Side panel bracket, front right 4 | 1 | 41215A37B56 | Shop at ECS Tuning | ||||||
| 06 | Bracket, side panel column A | 2 | 41117174365 | $1.85 | Shop at ECS Tuning | |||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 4 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 2 | 83192211217 | Shop at ECS Tuning | |||||
| 07 | Bracket, side panel column A | 2 | 41009624949 | Shop at ECS Tuning | ||||||
| Required for repair | ||||||||||
| -- | Blind rivet N3 | 4 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Body adhesive K5 | 50 ML | 2 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Cleaner R1 | 100ML | 2 | 83192211217 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X12 | X | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Body nut | M6 | 2 | 07147133884 | $0.36 | Shop at ECS Tuning | ||||
