Hood locking system for BMW 1 Series F70 116 (2025)

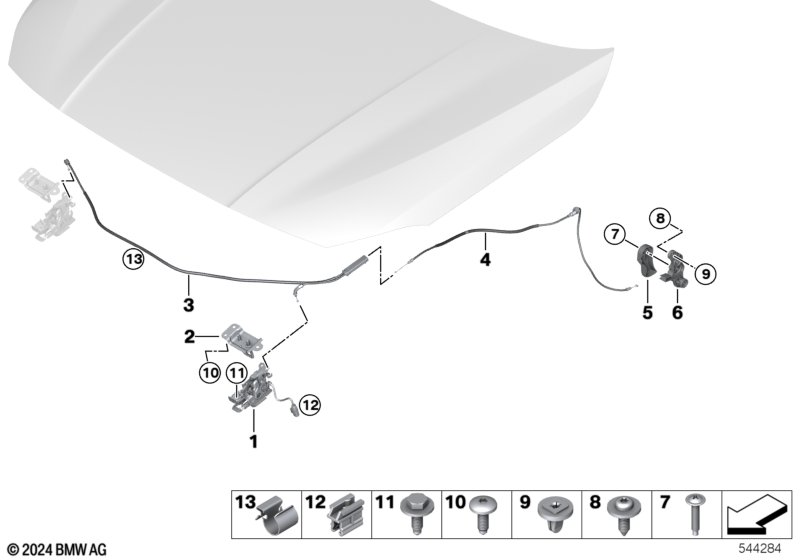

This Hood locking system technical drawing provides a detailed breakdown of the assembly for the 1 Series F70 116. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 01 | Schloss Aktiv | 1 | 51235A35FD6 | Shop at ECS Tuning | ||||||
| 01 | Schloss Aktiv mit Schalter | 1 | 51235A35FD7 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=No |
|||||||||
| 01 | Door lock passive | 1 | 51235A35FD4 | Shop at ECS Tuning | ||||||
| 01 | Lock passive with switch | 1 | 51235A35FD5 | Shop at ECS Tuning | ||||||
| 02 | Catch bracket | 2 | 51238737167 | Shop at ECS Tuning | ||||||
| 03 | Coupling, two bowden cables | 1 | 51235A35FD0 | NoS | Shop at ECS Tuning | |||||
| 04 | Bowden cable, hood, rear | RL | 1 | 51235A35FD2 | Shop at ECS Tuning | |||||
| 05 | Lever f engine hood mechanism | RL | 1 | 51237309608 | Shop at ECS Tuning | |||||
| 06 | Combination bracket | RL | 1 | 51237326518 | Shop at ECS Tuning | |||||
| 07 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 1 | 07146959925 | $0.29 | Shop at ECS Tuning | ||||
| 08 | Screw | 5X16 | 3 | 07129907471 | Shop at ECS Tuning | |||||
| 09 | Expanding nut | 7X7 MM | 3 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 10 | Combi oval-head machine screw | ISA M8X20 | 6 | 07147234925 | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M6X16 ZNS3 | 4 | 07119905577 | Shop at ECS Tuning | |||||
| 12 | Plug-in connection bracket | 1 | 61138038489 | $1.98 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 12 | Plug-in connection bracket | 2 | 61138038489 | $1.98 | Shop at ECS Tuning | |||||
| 13 | Cable clamp | 3 | 51237672168 | Shop at ECS Tuning | ||||||
