Hood / mounted parts for BMW 2 Series F74 Gran Coupé 220 (2025)

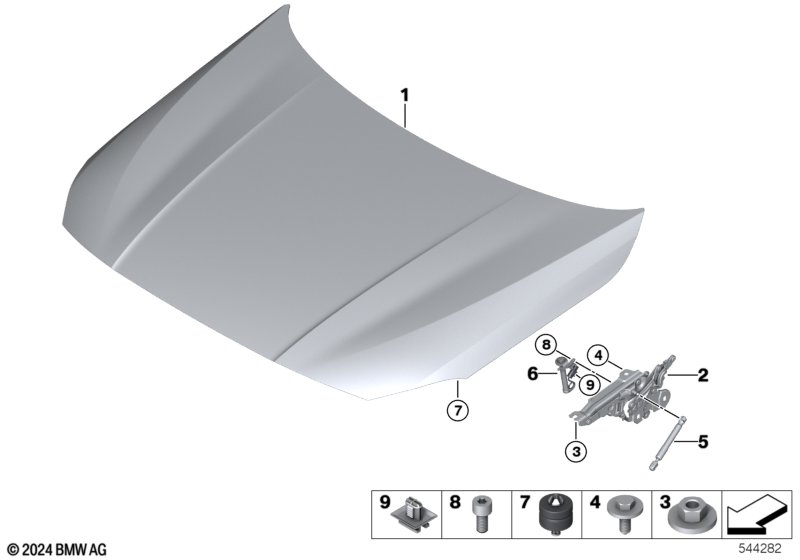

This Hood / mounted parts technical drawing provides a detailed breakdown of the assembly for the 2 Series F74 Gran Coupé 220. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hood | 1 | 41619630180 | Shop at ECS Tuning | ||||||
| 02 | Left engine hood hinge | 1 | 41009465225 | Shop at ECS Tuning | ||||||
| 02 | Right engine hood hinge | 1 | 41009465226 | Shop at ECS Tuning | ||||||
| 03 | Hex nut with plate | M8 | 4 | 07149302543 | Shop at ECS Tuning | |||||
| 04 | Hex bolt with washer | M8X25 | 4 | 07149231837 | Shop at ECS Tuning | |||||
| 05 | Gas strut, hood | 2 | 51237473453 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 06 | Actor, rear left | 1 | 51237450943 | Shop at ECS Tuning | ||||||
| 06 | Actor, rear right | 1 | 51237450944 | Shop at ECS Tuning | ||||||
| 07 | Stop pad hood | 2 | 51235A62346 | Shop at ECS Tuning | ||||||
| 08 | ISA screw | M6X12-8.8-ZNNIV | 2 | 07129905867 | Shop at ECS Tuning | |||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 09 | Plug-in connection bracket | 2 | 61139285769 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2 Series F74 Gran Coupé 220 Hood / mounted parts?
- This technical diagram illustrates the Hood / mounted parts within the Bodywork group for the 2 Series F74 Gran Coupé 220 produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Hood (Part #41619630180).
- Which models use the hardware listed in this Hood / mounted parts?
- The hardware and components featured in the Hood / mounted parts are specific to the 2 Series F74 Gran Coupé 220 produced during 2025. These technical specifications ensure that parts like the Hood (41619630180) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hood / mounted parts assembly?
- Each item in the Hood / mounted parts corresponds to the numbered list below the illustration. For the 2 Series F74 Gran Coupé 220, you can identify the Hood by locating its position on the schematic, which then links to the official BMW part number 41619630180 for the Bodywork section.
