Hood locking system for BMW MINI Cabrio F67 JCW (2025)

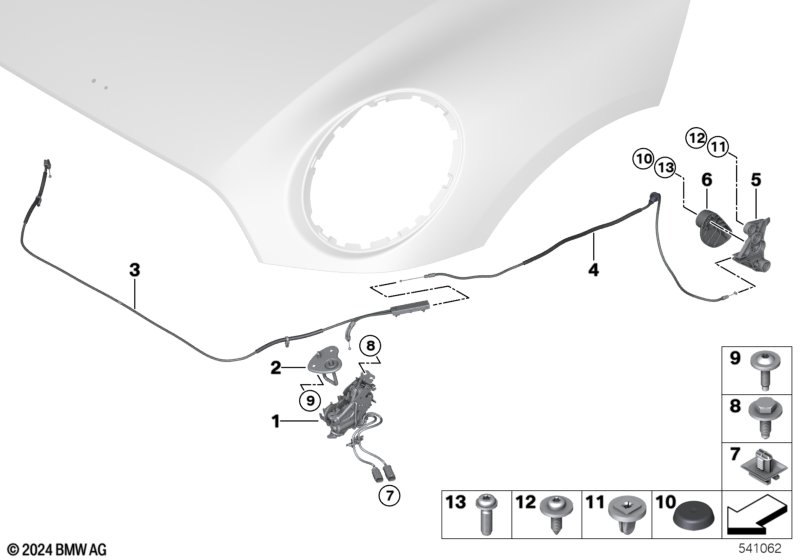

This Hood locking system technical drawing provides a detailed breakdown of the assembly for the MINI Cabrio F67 JCW. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2025.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 01 | Schloss Aktiv mit Schalter | 1 | 51239880003 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection Achtung! Schloss hat eine Ringfeder im Sichtbereich weniger. |
S8TFA=Yes |
|||||||||
| 01 | Schloss Aktiv | 1 | 51239880004 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=No |
|||||||||
| 01 | Lock passive with switch | 1 | 51239879995 | Shop at ECS Tuning | ||||||
| 01 | Door lock passive | 1 | 51239879996 | Shop at ECS Tuning | ||||||
| 02 | Lock top part | 2 | 51237347412 | Shop at ECS Tuning | ||||||
| 03 | Bowden cable, hood, front | 1 | 51235A32350 | Shop at ECS Tuning | ||||||
| 04 | Bowden cable, hood, rear | RL | 1 | 51235A32349 | Shop at ECS Tuning | |||||
| 05 | Combination bracket, right | 1 | 51437298818 | Shop at ECS Tuning | ||||||
| 06 | Lever f engine hood mechanism | 1 | 51237307645 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=Yes |
|||||||||
| 07 | Plug-in connection bracket | 3 | 61139285769 | Shop at ECS Tuning | ||||||
| For vehicles with Active pedestrian protection |
S8TFA=No |
|||||||||
| 07 | Plug-in connection bracket | 1 | 61139285769 | Shop at ECS Tuning | ||||||
| 08 | Hex bolt | M6X16 ZNS3 | 4 | 07119905577 | Shop at ECS Tuning | |||||
| 09 | Oval-head screw with washer | ISA M6X21 | 4 | 07147263759 | Shop at ECS Tuning | |||||
| 10 | Blind plug | D=12MM | 1 | 07147127539 | $0.26 | Shop at ECS Tuning | ||||
| 11 | Expanding nut | 7X7 MM | 3 | 65138387414 | $0.47 | Shop at ECS Tuning | ||||
| 12 | Screw | 5X16 | 3 | 07129907471 | Shop at ECS Tuning | |||||
| 13 | Screw | VS-TS5X16 SW | 1 | 51139908498 | Shop at ECS Tuning | |||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW MINI Cabrio F67 JCW Hood locking system?
- This technical diagram illustrates the Hood locking system within the Bodywork group for the MINI Cabrio F67 JCW produced during 2025. It provides a detailed exploded view of the components, identifying key parts such as the Schloss Aktiv mit Schalter (Part #51239880003).
- Which models use the hardware listed in this Hood locking system?
- The hardware and components featured in the Hood locking system are specific to the MINI Cabrio F67 JCW produced during 2025. These technical specifications ensure that parts like the Schloss Aktiv mit Schalter (51239880003) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Hood locking system assembly?
- Each item in the Hood locking system corresponds to the numbered list below the illustration. For the MINI Cabrio F67 JCW, you can identify the Schloss Aktiv mit Schalter by locating its position on the schematic, which then links to the official BMW part number 51239880003 for the Bodywork section.
