Set motocase for BMW R50/5-R90S 69-76 R90S (1976)

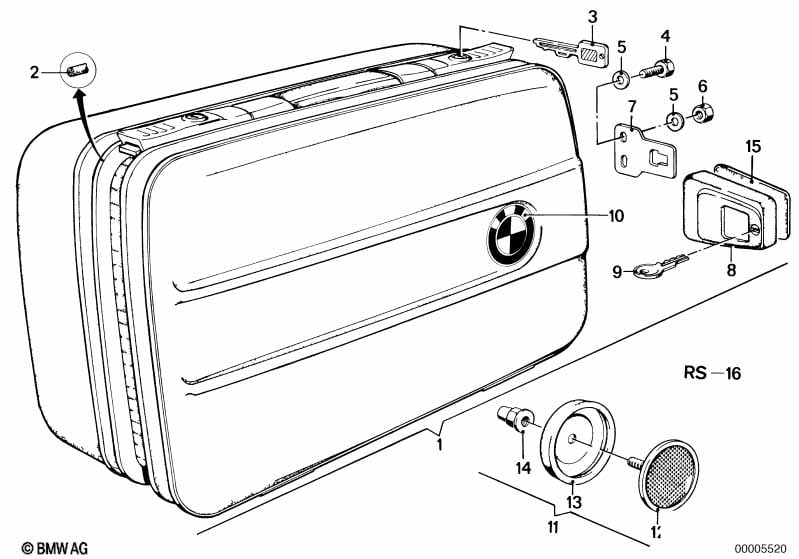

This Set motocase technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Set motocase white | 1 | 46541239269 | ENDED | Shop at ECS Tuning | |||||
| 01 | Motocase left | 1 | 46542300057 | $257.83 | +core | Shop at ECS Tuning | ||||
| 01 | Motocase right | 1 | 46542300058 | $257.83 | +core | Shop at ECS Tuning | ||||
| 01 | Set motocase black | 1 | 46542300059 | ENDED | Shop at ECS Tuning | |||||
| 02 | Gasket | 1550 X 4 | 2 | 46541238911 | $7.21 | ENDED | Shop at ECS Tuning | |||
| 03 | Standard key (blank) | STAHLBLECH(341) | 4 | 46541234798 | ENDED | Shop at ECS Tuning | ||||
| 03 | Standard key (blank) | DRUCKGUSS(150) | 4 | 46541237764 | ENDED | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X16-8.8-ZNS | 2 | 07119913015 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Washer | 6,4 | 4 | 07/1980 | 07119931639 | $0.24 | ENDED | Shop at ECS Tuning | ||
| 06 | Self-locking hex nut | M6 ZNS | 2 | 07129900191 | $0.38 | ENDED | Shop at ECS Tuning | |||
| 07 | Support shackle | 2 | 46541235467 | ENDED | Shop at ECS Tuning | |||||
| 08 | Lock | 2 | 46541235468 | ENDED | Shop at ECS Tuning | |||||
| 09 | Standard key (code) | S324 | 2 | 46541235469 | ENDED | Shop at ECS Tuning | ||||
| 09 | Standard key (code) | S325 | 2 | 46549061023 | ENDED | Shop at ECS Tuning | ||||
| 10 | Badge | D=70MM | 2 | 46637686746 | $12.79 | Shop at ECS Tuning | ||||
| For vehicles with Switzerland version |
=Yes |
|||||||||
| 11 | Installing set side marking light | 1 | 63131243177 | ENDED | Shop at ECS Tuning | |||||
| 12 | Reflector, red | 2 | 63131354792 | $7.75 | ENDED | Shop at ECS Tuning | ||||
| 13 | Base | 2 | 63131243171 | ENDED | Shop at ECS Tuning | |||||
| 14 | Cap nut | M5 | 2 | 51185480150 | $0.32 | ENDED | Shop at ECS Tuning | |||
| 15 | Base | 2MM | 1 | 46541239478 | ENDED | Shop at ECS Tuning | ||||
| 15 | Base | 3MM | 1 | 46541239479 | $2.80 | Shop at ECS Tuning | ||||
| 16 | Repair set lock sheet lock | 1 | 46541238987 | ENDED | Shop at ECS Tuning | |||||
| 16 | Repair set lock diecast | 1 | 46549058175 | ENDED | Shop at ECS Tuning | |||||
| 16 | Repair set lock diecast | CODE | 1 | 46549058178 | $93.00 | ENDED | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R50/5-R90S 69-76 R90S Set motocase?
- This technical diagram illustrates the Set motocase within the Frame and mounting parts group for the R50/5-R90S 69-76 R90S produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Set motocase white (Part #46541239269).
- Which models use the hardware listed in this Set motocase?
- The hardware and components featured in the Set motocase are specific to the R50/5-R90S 69-76 R90S produced during 1976. These technical specifications ensure that parts like the Set motocase white (46541239269) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Set motocase assembly?
- Each item in the Set motocase corresponds to the numbered list below the illustration. For the R50/5-R90S 69-76 R90S, you can identify the Set motocase white by locating its position on the schematic, which then links to the official BMW part number 46541239269 for the Frame and mounting parts section.
