Front frame for BMW R45-R65LS..78-85 R65

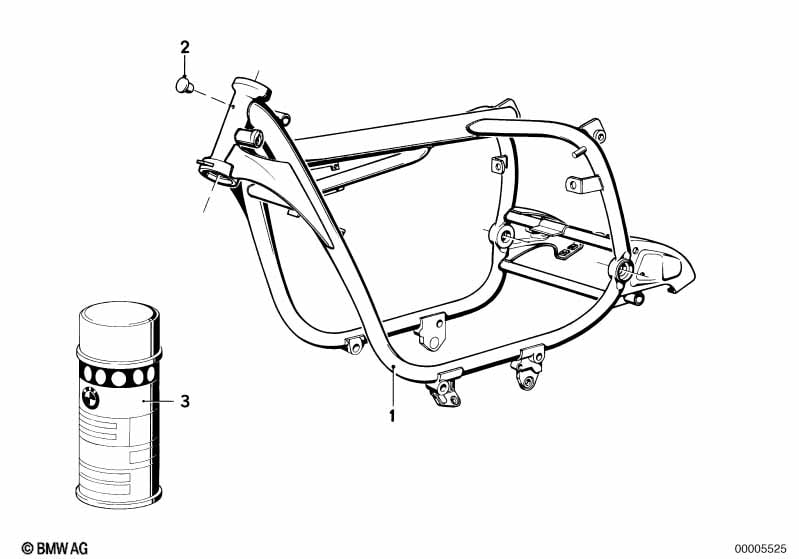

This Front frame technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front frame schwarz | 1 | 09/1980 | 46511240462 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Front frame schwarz | 1 | 09/1980 | 46512301717 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bump stop | H=10 | 1 | 09/1980 | 52531236128 | $2.80 | Shop at ECS Tuning | |||
| -- | Center stand | 1 | 09/1980 | 46522301594 | $124.48 | +core | Shop at ECS Tuning | |||
| -- | Bush | 13,5MM | 1 | 09/1980 | 46522301704 | $3.86 | Shop at ECS Tuning | |||
| -- | Tension spring | L=111MM | 2 | 09/1980 | 46522331805 | $6.68 | Shop at ECS Tuning | |||
| 01 | Front frame schwarz | 1 | 09/1980 | 46512301617 | +core | Shop at ECS Tuning | ||||
| 02 | Blind plug | 2 | 41355780222 | $0.40 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65 Front frame?
- This technical diagram illustrates the Front frame within the Frame and mounting parts group for the R45-R65LS..78-85 R65. It provides a detailed exploded view of the components, identifying key parts such as the Front frame schwarz (Part #46511240462).
- Which models use the hardware listed in this Front frame?
- The hardware and components featured in the Front frame are specific to the R45-R65LS..78-85 R65. These technical specifications ensure that parts like the Front frame schwarz (46511240462) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front frame assembly?
- Each item in the Front frame corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65, you can identify the Front frame schwarz by locating its position on the schematic, which then links to the official BMW part number 46511240462 for the Frame and mounting parts section.
