Set case holder for BMW R45-R65LS..78-85 R65LS (1985)

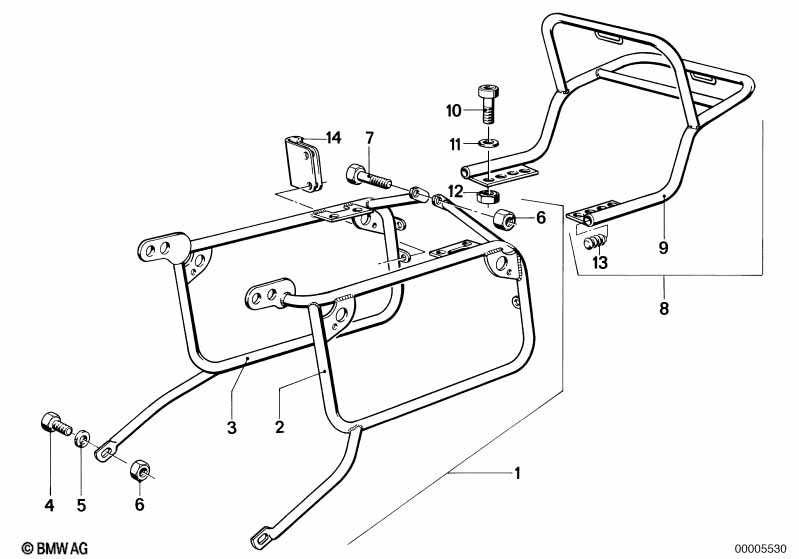

This Set case holder technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | FG* R50/5 2 906 305 / R60/5 2 947 967 / R75/5 2 997 986 |
|||||||||
| 01 | Set case holder | VERCHROMT | 1 | 46541239488 | $251.10 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Set case holder | MATT SCHWARZ | 1 | 46541239490 | $178.56 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Left case holder | MATT SCHWARZ | 1 | 46541239483 | $108.42 | Shop at ECS Tuning | ||||
| 02 | Left case holder | VERCHROMT | 1 | 46541241589 | $141.33 | +core | Shop at ECS Tuning | |||
| 03 | Case holder right | MATT SCHWARZ | 1 | 46541239484 | $108.42 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Case holder right | VERCHROMT | 1 | 46541241590 | $141.33 | +core | Shop at ECS Tuning | |||
| 04 | Hex bolt | M6X18 | 2 | 07119913019 | $0.60 | Shop at ECS Tuning | ||||
| 05 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Self-locking hex nut | M6-10 ZN | 3 | 07/1985 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 06 | Self-locking hex nut | M6 ZNNIV SI | 3 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | M6X45 8.8 ZNS3 | 1 | 07119902976 | $0.45 | Shop at ECS Tuning | ||||
| 14 | Clamp | 2 | 46541234511 | $20.94 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65LS Set case holder?
- This technical diagram illustrates the Set case holder within the Frame and mounting parts group for the R45-R65LS..78-85 R65LS produced during 1985. It provides a detailed exploded view of the components, identifying key parts such as the Set case holder (Part #46541239488).
- Which models use the hardware listed in this Set case holder?
- The hardware and components featured in the Set case holder are specific to the R45-R65LS..78-85 R65LS produced during 1985. These technical specifications ensure that parts like the Set case holder (46541239488) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Set case holder assembly?
- Each item in the Set case holder corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65LS, you can identify the Set case holder by locating its position on the schematic, which then links to the official BMW part number 46541239488 for the Frame and mounting parts section.
