Leather saddle bag for BMW R45-R65LS..78-85 R65

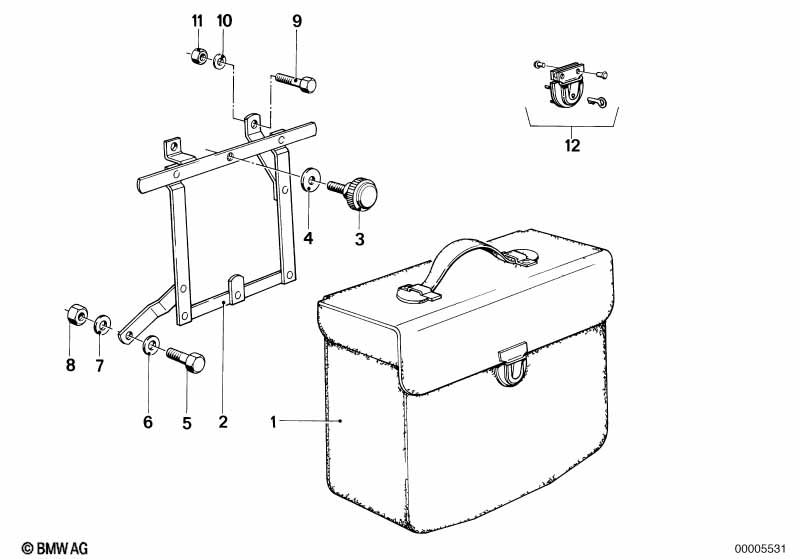

This Leather saddle bag technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Leather saddle bag | 2 | 71601238511 | $381.43 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Saddle bag holder left | 1 | 71601237249 | $75.69 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Saddle bag holder right | 1 | 71601237250 | $75.69 | +core | Shop at ECS Tuning | ||||
| 03 | Knurled bolt | 2 | 71601231263 | $1.72 | Shop at ECS Tuning | |||||
| 04 | Washer | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M8X25-8.8-ZNNIV | 2 | 07119906181 | $0.55 | Shop at ECS Tuning | ||||
| 06 | Washer | 8,4 140HV | 2 | 07119931684 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Washer | 8,4X18X2MM | 2 | 07149180923 | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X20-8.8-ZNS | 2 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 10 | Washer | A6,4-ZNNIV SI | X | 07119904202 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M6-10 ZN | 2 | 07/1985 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 11 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Lock | 2 | 71601232278 | $29.08 | ENDED, +core | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
