Rear mudguard for BMW R45-R65LS..78-85 R65

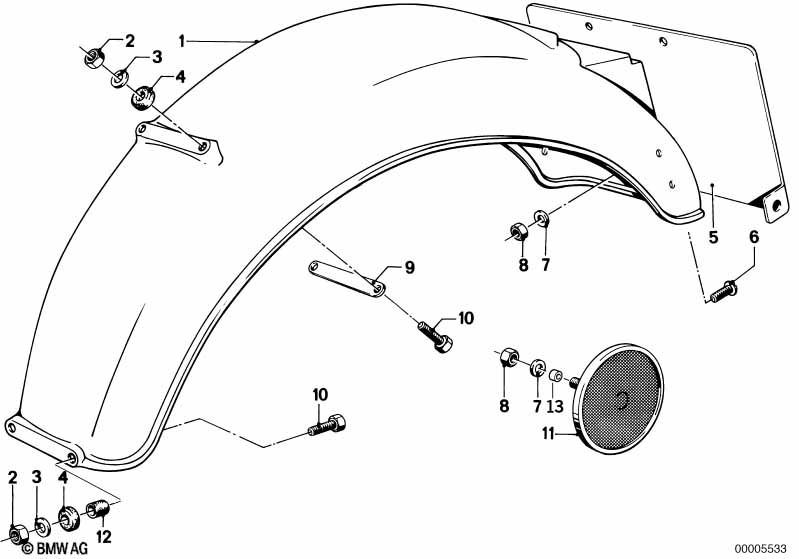

This Rear mudguard technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Wheel cover, "matt black," rear | 1 | 46621240397 | $241.86 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 04 | Rubber washer | 4 | 46621230798 | $2.23 | Shop at ECS Tuning | |||||
| 05 | Bracket | 1 | 46622303274 | $27.66 | Shop at ECS Tuning | |||||
| 06 | Countersunk head screw | M5X12 | 3 | 07119928480 | $0.87 | ENDED | Shop at ECS Tuning | |||
| 07 | Washer | 5.3-140 HV-ZNS | 5 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Reinforcement | M6X25 | 1 | 46621235877 | $6.82 | ENDED | Shop at ECS Tuning | |||
| 09 | Base | 2 | 63231352944 | $2.58 | Shop at ECS Tuning | |||||
| 10 | Hex bolt | M6X20-8.8-ZNS | 4 | 07119913016 | $0.60 | ENDED | Shop at ECS Tuning | |||
| 11 | Reflector, yellow | 2 | 63141244430 | $7.75 | ENDED | Shop at ECS Tuning | ||||
| 12 | Hose | 2 | 46511233814 | $0.94 | Shop at ECS Tuning | |||||
| 13 | Bush | 2 | 46622303276 | $5.89 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
