Covering cockpit prime coated for BMW R45-R65LS..78-85 R65

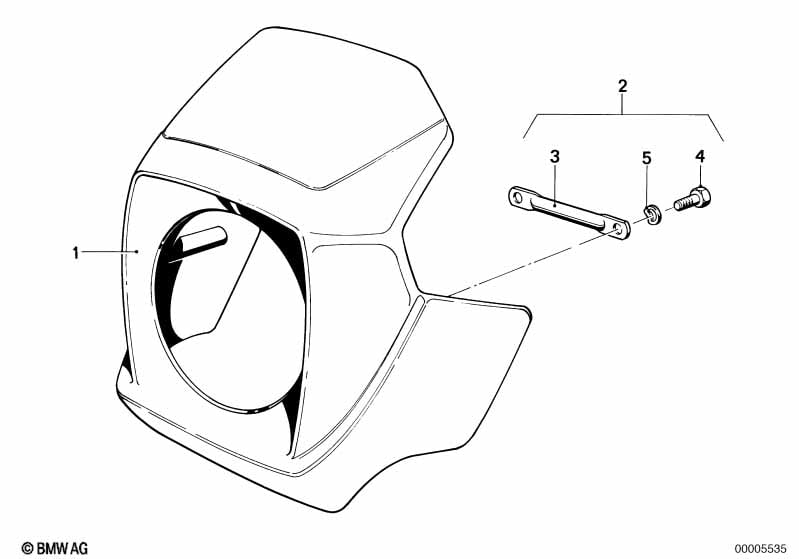

This Covering cockpit prime coated technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering cockpit prime coated | 1 | 46631240822 | $214.75 | ENDED | Shop at ECS Tuning | ||||
| 02 | Retrofit kit, trim panel | 1 | 46631240829 | $23.62 | ENDED | Shop at ECS Tuning | ||||
| 03 | Rod | 2 | 46631240828 | $5.98 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Wave washer | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65 Covering cockpit prime coated?
- This technical diagram illustrates the Covering cockpit prime coated within the Frame and mounting parts group for the R45-R65LS..78-85 R65. It provides a detailed exploded view of the components, identifying key parts such as the Covering cockpit prime coated (Part #46631240822).
- Which models use the hardware listed in this Covering cockpit prime coated?
- The hardware and components featured in the Covering cockpit prime coated are specific to the R45-R65LS..78-85 R65. These technical specifications ensure that parts like the Covering cockpit prime coated (46631240822) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Covering cockpit prime coated assembly?
- Each item in the Covering cockpit prime coated corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65, you can identify the Covering cockpit prime coated by locating its position on the schematic, which then links to the official BMW part number 46631240822 for the Frame and mounting parts section.
