Windshield for BMW R45-R65LS..78-85 R65T (1985)

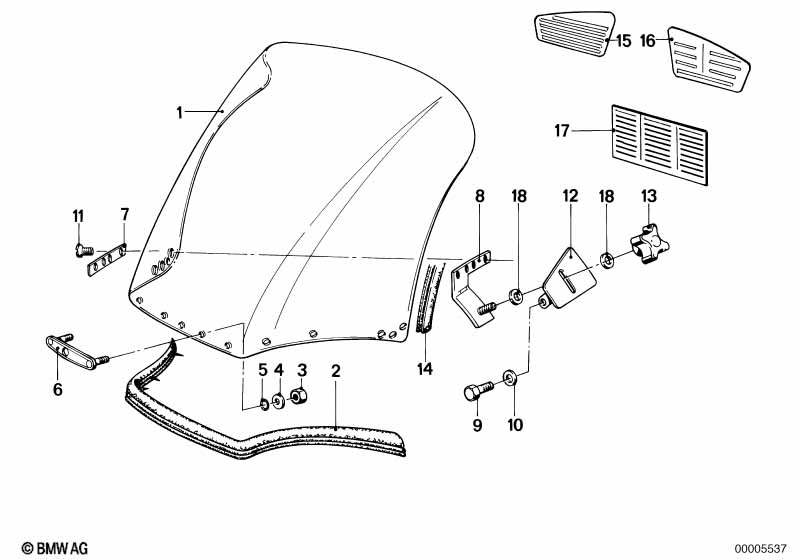

This Windshield technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65T. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Windshield | 485MM | 1 | 46631452480 | $303.89 | +core, SI 4602088(512) | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Windshield | 520MM | 1 | 46632304507 | $530.18 | +core, SI 4602088(512) | Shop at ECS Tuning | |||
| 02 | Gasket | 1 | 46631240649 | $48.24 | Shop at ECS Tuning | |||||
| 04 | Washer | 10X5,3X1-200 HV | 2 | 07119904206 | Shop at ECS Tuning | |||||
| 04 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 05 | O-ring | 6.3X2 A | 2 | 07119906327 | $1.32 | Shop at ECS Tuning | ||||
| 06 | Clamping plate | 1 | 46631241031 | $25.30 | Shop at ECS Tuning | |||||
| 07 | Clamping plate left | 1 | 46631240653 | $6.72 | ENDED | Shop at ECS Tuning | ||||
| 07 | Clamping plate right | 1 | 46631240654 | $6.72 | ENDED | Shop at ECS Tuning | ||||
| 08 | Bracket left | 1 | 46631240637 | $13.64 | Shop at ECS Tuning | |||||
| 08 | Bracket right | 1 | 46631240638 | $13.64 | ENDED | Shop at ECS Tuning | ||||
| 09 | Hex bolt | M6X10-8.8-ZNS3 | 4 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 10 | Washer | 6 | 46631240819 | $0.87 | Shop at ECS Tuning | |||||
| 11 | Csk.fillister head srew | M5X10 | 6 | 07119928477 | $0.30 | Shop at ECS Tuning | ||||
| 12 | Base plate left | 1 | 46631240655 | $14.29 | Shop at ECS Tuning | |||||
| 12 | Base plate right | 1 | 46631240656 | $14.29 | Shop at ECS Tuning | |||||
| 13 | Handle | 2 | 46632307320 | $7.21 | Shop at ECS Tuning | |||||
| 14 | Edge protection | 1330MM | 1 | 46632302180 | $13.55 | Shop at ECS Tuning | ||||
| 15 | Label | REIFENDRUCK | 1 | 46631239759 | $13.54 | ENDED | Shop at ECS Tuning | |||
| 16 | Label | MOTOROEL | 1 | 46631239760 | $13.54 | ENDED | Shop at ECS Tuning | |||
| 17 | Label right | 1 | 46631453085 | $2.20 | ENDED | Shop at ECS Tuning | ||||
| 18 | Washer | 4 | 46631240819 | $0.87 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
- ENDED = the part has been discontinued (no longer available).
