Windshield for BMW R45-R65LS..78-85 R65

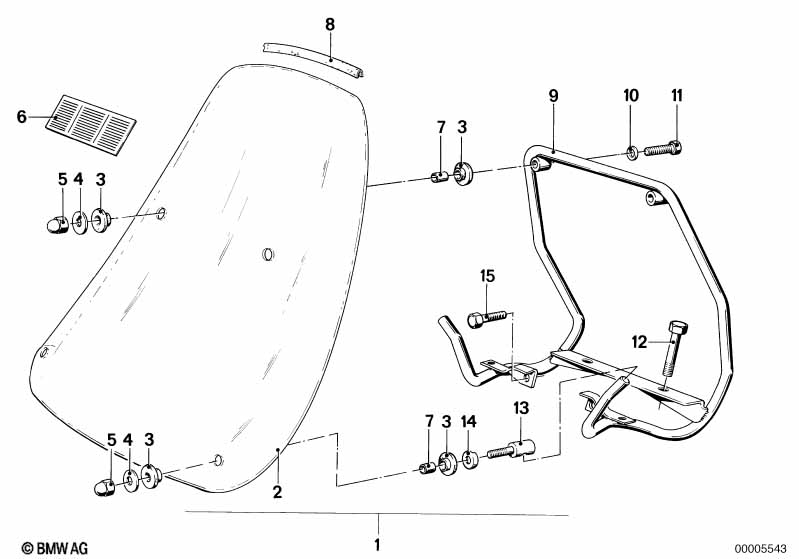

This Windshield technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Handlebar, high |
X611A=Yes |
|||||||||
| 01 | Set windshield with fastening | 1 | 46631239282 | $399.53 | ENDED, +core | Shop at ECS Tuning | ||||
| 02 | Windshield | 1 | 46632307329 | $247.72 | +core | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Bush | L= 10MM | 1 | 46632323002 | $1.13 | ENDED | Shop at ECS Tuning | |||
| 03 | Grommet | 8 | 46631233619 | $1.74 | ENDED | Shop at ECS Tuning | ||||
| 04 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 05 | Cap nut | M6 | 4 | 46632300370 | $1.09 | Shop at ECS Tuning | ||||
| 06 | Label right | 1 | 46631453085 | $2.20 | ENDED | Shop at ECS Tuning | ||||
| 07 | Bush | L= 8,5MM | 4 | 05/1991 | 46631233253 | $2.49 | ENDED | Shop at ECS Tuning | ||
| 08 | Edge protection | 1 | 46631239671 | $11.92 | Shop at ECS Tuning | |||||
| 09 | Bow | 1 | 46631237587 | $120.70 | Shop at ECS Tuning | |||||
| 10 | Washer | 2 | 46632300371 | $2.80 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex bolt | M6X30 | 2 | 07119913101 | $0.60 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M8X50 | 2 | 07119904533 | $2.84 | Shop at ECS Tuning | ||||
| 13 | Pin | 2 | 46631233608 | $6.48 | Shop at ECS Tuning | |||||
| 14 | Cap | 2 | 46631233609 | $4.55 | Shop at ECS Tuning | |||||
| 15 | Hex bolt | M8X22-8.8-ZNS3 | 2 | 07119904040 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
