Mounting parts f rear protection bar for BMW R45-R65LS..78-85 R65

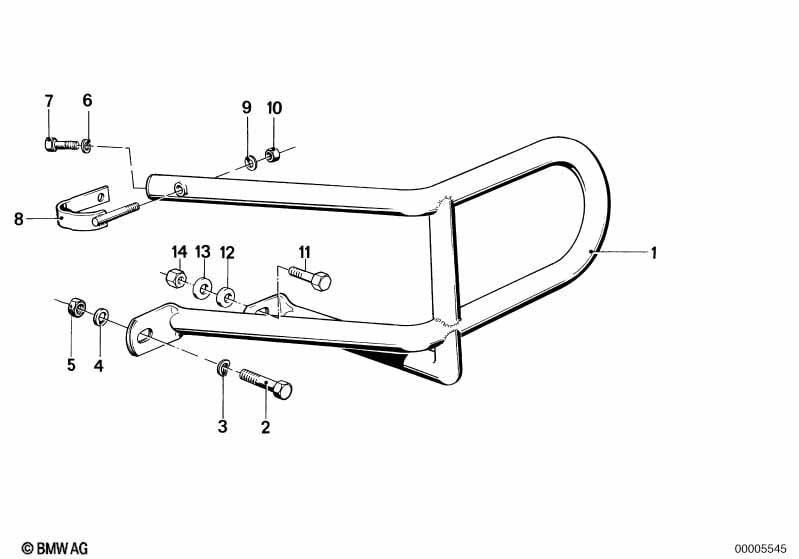

This Mounting parts f rear protection bar technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | only applies to LEATHER SADDLE BAG |
|||||||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Protection bar rear left | VERCROMT | 1 | 46712303445 | ENDED | Shop at ECS Tuning | ||||
| 01 | Protection bar rear right | VERCHROMT | 1 | 46712303446 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M8X30-8.8-ZNS3 | 2 | 07119902901 | $0.25 | Shop at ECS Tuning | ||||
| 03 | Washer | 8,4X18X2MM | 2 | 07149180923 | Shop at ECS Tuning | |||||
| 04 | Washer | 8,4 140HV | 2 | 07119931684 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Bush | 2 | 46712300468 | ENDED | Shop at ECS Tuning | |||||
| 05 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 06 | Spring washer Black | B6-ZN | 2 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 06 | Washer | 5.3-140 HV-ZNS | 2 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 06 | Wave washer | B6-ZNS3 | 2 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex bolt | M6X10-8.8-ZNS3 | 2 | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Clamp | 2 | 46711238313 | Shop at ECS Tuning | ||||||
| 09 | Washer | A6,4-ZNNIV SI | 2 | 07119904202 | Shop at ECS Tuning | |||||
| 10 | Self-locking hex nut | M6-10 ZN | 2 | 12/1995 | 07129922705 | $0.27 | ENDED | Shop at ECS Tuning | ||
| 10 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 11 | Fillister-head screw | M8X35-10.9-ZNS3 | 2 | 07119906650 | $0.87 | Shop at ECS Tuning | ||||
| 12 | Bush | 2 | 46712300468 | ENDED | Shop at ECS Tuning | |||||
| 14 | Self-locking hex nut | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
