Footrest for BMW R45-R65LS..78-85 R65

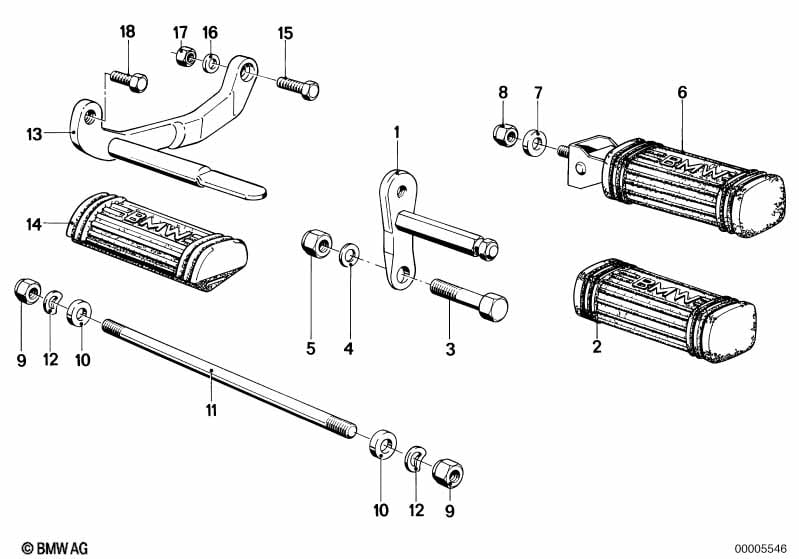

This Footrest technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Footrest, right | 1 | 09/1980 | 46711236309 | $79.12 | +core | Shop at ECS Tuning | |||
| 01 | Footrest, left | 1 | 09/1980 | 46711238450 | $79.12 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Footrest pad | 2 | 09/1980 | 46711234660 | $23.26 | Shop at ECS Tuning | ||||
| 03 | Hex bolt | M12X70 | 2 | 09/1980 | 07119912859 | $1.86 | ENDED | Shop at ECS Tuning | ||
| 04 | Washer | A13/HV-ZNS | 6 | 09/1980 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 04 | Washer | 12-300 HV-ZNS3 | 6 | 09/1980 | 07119904119 | $0.25 | Shop at ECS Tuning | |||
| 05 | Self-locking hex nut | M12-10-ZNS3 | 2 | 09/1980 | 07119905753 | $1.64 | Shop at ECS Tuning | |||
| 05 | Self-locking hex nut | M12 | 2 | 09/1980 | 07129922729 | $4.11 | ENDED | Shop at ECS Tuning | ||
| 06 | Footrest | RUNDE VARIANTE | 2 | 46711230477 | $49.88 | Shop at ECS Tuning | ||||
| EXCHANGEABLE IN PAIRS ONLY | ||||||||||
| 06 | Footrest | ECKIGE VARIANTE | 2 | 46711234661 | $93.88 | +core | Shop at ECS Tuning | |||
| 07 | Wave washer | B10-ZNS3 | 2 | 07119904463 | Shop at ECS Tuning | |||||
| 08 | Self-locking hex nut | M10 | 2 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hex nut | M12X1,5 | 4 | 07119922940 | $1.29 | Shop at ECS Tuning | ||||
| 10 | Bush | 11X22X6 | 4 | 46712311727 | $1.68 | Shop at ECS Tuning | ||||
| 11 | Pin | M12X1,5 / 306MM | 2 | 46711230762 | $34.41 | Shop at ECS Tuning | ||||
| 12 | Wave washer | B12-ZN | 4 | 07119932132 | $0.25 | ENDED | Shop at ECS Tuning | |||
| 13 | Footrest, right | 1 | 09/1980 | 46712301522 | $53.98 | +core | Shop at ECS Tuning | |||
| 13 | Footrest, left | 1 | 09/1980 | 46712301525 | $63.86 | +core | Shop at ECS Tuning | |||
| 14 | Footrest pad | 2 | 09/1980 | 46711242046 | $13.31 | Shop at ECS Tuning | ||||
| 15 | Torx bolt | M10X50-ZNS3 | 1 | 09/1980 | 07129904984 | $2.05 | Shop at ECS Tuning | |||
| 16 | Washer | 10-200 HV-ZNNIV | 2 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 17 | Self-locking hex nut | M10 | 1 | 07129964672 | $0.36 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R45-R65LS..78-85 R65 Footrest?
- This technical diagram illustrates the Footrest within the Frame and mounting parts group for the R45-R65LS..78-85 R65. It provides a detailed exploded view of the components, identifying key parts such as the Footrest, right (Part #46711236309).
- Which models use the hardware listed in this Footrest?
- The hardware and components featured in the Footrest are specific to the R45-R65LS..78-85 R65. These technical specifications ensure that parts like the Footrest, right (46711236309) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Footrest assembly?
- Each item in the Footrest corresponds to the numbered list below the illustration. For the R45-R65LS..78-85 R65, you can identify the Footrest, right by locating its position on the schematic, which then links to the official BMW part number 46711236309 for the Frame and mounting parts section.
