Side stand for BMW R45-R65LS..78-85 R65

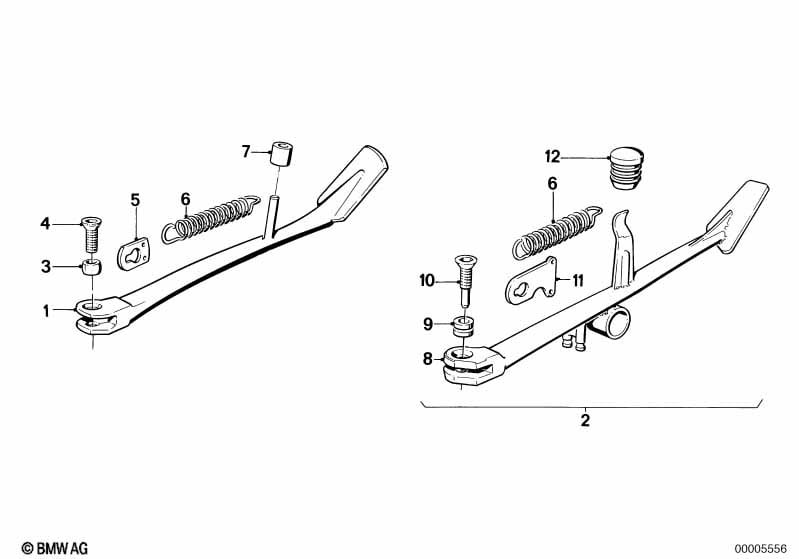

This Side stand technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Side stand installation set | VERSTAERKT | 1 | 09/1980 | 46531454751 | $127.22 | ENDED, +core, SI 462189535 | Shop at ECS Tuning | ||
| 03 | Bush | 1 | 09/1980 | 46532302000 | $16.49 | Shop at ECS Tuning | ||||
| 04 | Countersunk head screw | M8X23 | 1 | 09/1980 | 46531241170 | $0.61 | Shop at ECS Tuning | |||
| 05 | Holder | 1 | 09/1980 | 46531242330 | $2.57 | Shop at ECS Tuning | ||||
| 06 | Tension spring | 2 | 09/1980 | 46531242335 | $5.68 | Shop at ECS Tuning | ||||
| 07 | Rubber grommet | 1 | 09/1980 | 46531237523 | $0.57 | Shop at ECS Tuning | ||||
| 08 | Side stand | VERSTAERKT | 1 | 09/1980 | 46531454753 | $101.05 | ENDED, +core | Shop at ECS Tuning | ||
| 09 | Bush | UNTEN | 1 | 46531454746 | $7.54 | Shop at ECS Tuning | ||||
| 09 | Bush | 1 | 46531454748 | $8.87 | Shop at ECS Tuning | |||||
| 09 | Bush | OBEN | 1 | 09/1980 | 46531454745 | $8.87 | Shop at ECS Tuning | |||
| 10 | Bolt | M8X40 | 1 | 46531454747 | $7.98 | Shop at ECS Tuning | ||||
| 10 | Bolt | M8X35 | 1 | 09/1980 | 46532302004 | $5.65 | Shop at ECS Tuning | |||
| 11 | Holder | 1 | 09/1980 | 46532302005 | $4.51 | Shop at ECS Tuning | ||||
| 12 | Cap | 1 | 09/1980 | 46521236522 | $3.26 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
- SI = Service Information
