Set case holder for BMW R50/5-R90S 69-76 R90S (1976)
This Set case holder technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt | M6X18 | 2 | 07119913019 | $0.60 | Shop at ECS Tuning | ||||
| 02 | Washer | A6,4-200HV-ZNS3 | 4 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 03 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 03 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 04 | Hex nut | M6-8-ZNNIV SI | 7 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Hex bolt | M6X45 8.8 ZNS3 | 4 | 07119902976 | $0.45 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R50/5-R90S 69-76 R90S Set case holder?

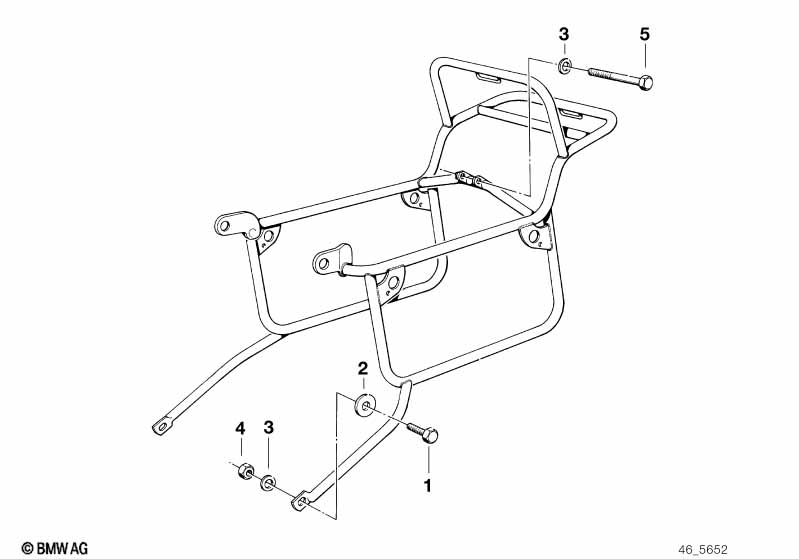

- This technical diagram illustrates the Set case holder within the Frame and mounting parts group for the R50/5-R90S 69-76 R90S produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Hex bolt (Part #07119913019).
- Which models use the hardware listed in this Set case holder?
- The hardware and components featured in the Set case holder are specific to the R50/5-R90S 69-76 R90S produced during 1976. These technical specifications ensure that parts like the Hex bolt (07119913019) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Set case holder assembly?
- Each item in the Set case holder corresponds to the numbered list below the illustration. For the R50/5-R90S 69-76 R90S, you can identify the Hex bolt by locating its position on the schematic, which then links to the official BMW part number 07119913019 for the Frame and mounting parts section.
