Safety bar for BMW R50/5-R90S 69-76 R90S (1976)

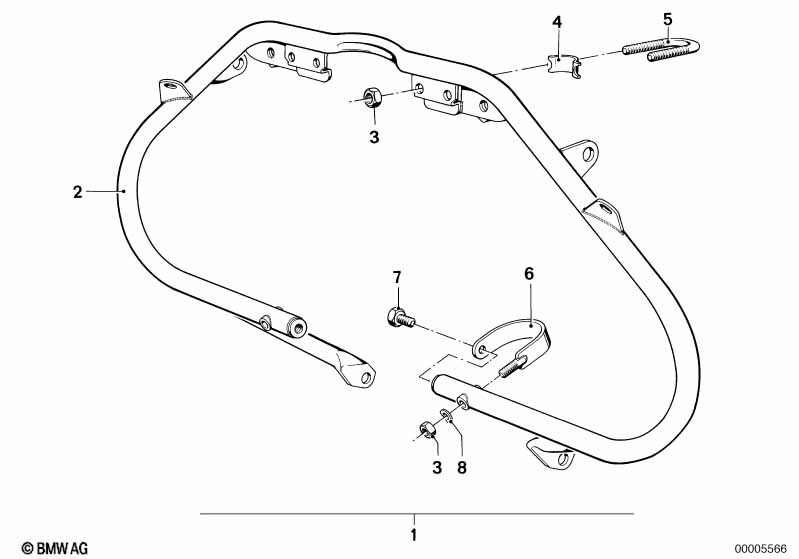

This Safety bar technical drawing provides a detailed breakdown of the assembly for the R50/5-R90S 69-76 R90S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Safety bar | 1 | 71609024171 | $207.69 | ENDED | Shop at ECS Tuning | ||||
| 03 | Self-locking hex nut | M8-8-ZNS3 | 6 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Base | 2 | 46711230833 | $4.71 | Shop at ECS Tuning | |||||
| 05 | Bow | CR HGL 3 | 2 | 71609024186 | $12.85 | ENDED | Shop at ECS Tuning | |||
| 06 | Clamp | 2 | 46711237759 | $19.44 | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 08 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW R50/5-R90S 69-76 R90S Safety bar?
- This technical diagram illustrates the Safety bar within the Frame and mounting parts group for the R50/5-R90S 69-76 R90S produced during 1976. It provides a detailed exploded view of the components, identifying key parts such as the Safety bar (Part #71609024171).
- Which models use the hardware listed in this Safety bar?
- The hardware and components featured in the Safety bar are specific to the R50/5-R90S 69-76 R90S produced during 1976. These technical specifications ensure that parts like the Safety bar (71609024171) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Safety bar assembly?
- Each item in the Safety bar corresponds to the numbered list below the illustration. For the R50/5-R90S 69-76 R90S, you can identify the Safety bar by locating its position on the schematic, which then links to the official BMW part number 71609024171 for the Frame and mounting parts section.
