Rear frame for BMW R45-R65LS..78-85 R65T (1985)

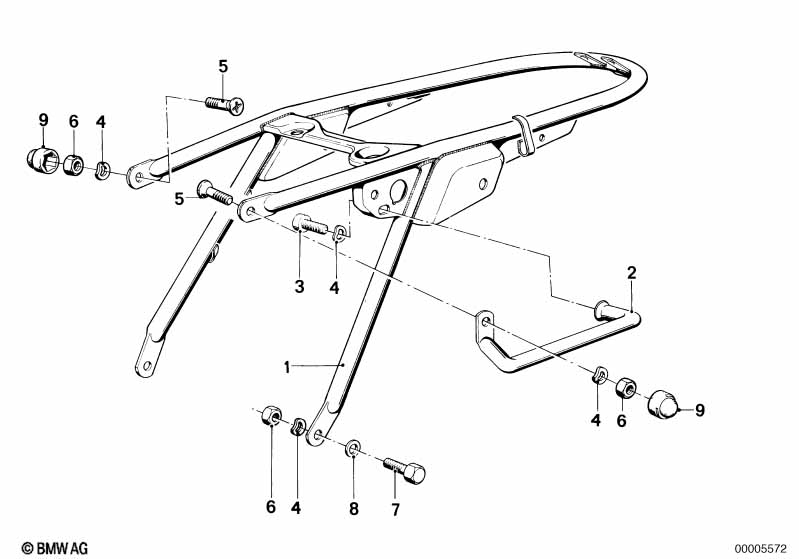

This Rear frame technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65T. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear frame schwarz | 1 | 09/1980 | 46512301242 | $310.25 | +core | Shop at ECS Tuning | |||
| 02 | Handle | 1 | 46511234637 | $35.89 | ENDED | Shop at ECS Tuning | ||||
| 03 | Fillister-head screw | M8X16-8.8-ZNS3 | 1 | 07119904101 | $0.29 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 5 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Countersunk head screw | 2 | 46511242001 | $2.58 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 07 | Hex bolt | 2 | 46511231093 | $2.58 | ENDED | Shop at ECS Tuning | ||||
| 08 | Washer | 8,4 140HV | 2 | 07119931684 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Protection cap | M8 | 2 | 46511234785 | $0.60 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
