Safety bar for BMW R45-R65LS..78-85 R45

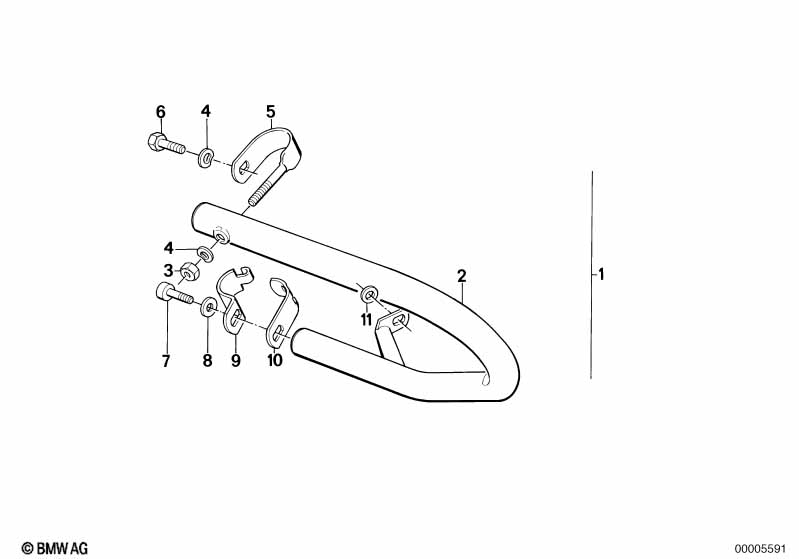

This Safety bar technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Retrofit kit, safety bar | VERCHROMT | 1 | 46712301838 | $302.44 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Retrofit kit, safety bar | MATT SCHWARZ | 1 | 46712301839 | $232.13 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Retrofit kit, safety bar | VERCHROMT | 1 | 46712301840 | $273.42 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Safety bar, left | MATT SCHWARZ | 1 | 46711240365 | $117.27 | Shop at ECS Tuning | ||||
| 02 | Safety bar, left | 1 | 46711240367 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Safety bar, left | 1 | 46711240855 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Safety bar, right | 1 | 46712301821 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Safety bar, right | MATT SCHWARZ | 1 | 46712301829 | $117.27 | Shop at ECS Tuning | ||||
| 02 | Safety bar, right | 1 | 46712301830 | +core | Shop at ECS Tuning | |||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 02 | Safety bar, left | VERCHROMT | 1 | 46711240415 | +core | Shop at ECS Tuning | ||||
| 02 | Safety bar, right | VERCHROMT | 1 | 46712301823 | $151.78 | Shop at ECS Tuning | ||||
| For vehicles with National version Switzerland |
Y731A=Yes |
|||||||||
| 02 | Safety bar, right | VERCHROMT | 1 | 46712301826 | $151.78 | ENDED, +core | Shop at ECS Tuning | |||
| 03 | Self-locking hex nut | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 4 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Clamp | 2 | 46711237759 | $19.44 | Shop at ECS Tuning | |||||
| 06 | Hex bolt | M8X16-8.8-ZNS3 | 2 | 07119902900 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Fillister-head screw | M8X16-8.8-ZNS3 | 2 | 07119904101 | $0.29 | Shop at ECS Tuning | ||||
| 08 | Washer | 8,4 | 2 | 07119931697 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Clamp | SCHWARZ | 2 | 46712302079 | $6.72 | ENDED | Shop at ECS Tuning | |||
| 10 | Bracket black | 2 | 46712302080 | $5.60 | Shop at ECS Tuning | |||||
| 11 | Washer | A13/HV-ZNS | 2 | 12/1995 | 07119901766 | $0.30 | ENDED | Shop at ECS Tuning | ||
| 11 | Washer | 12-300 HV-ZNS3 | 2 | 07119904119 | $0.25 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
