Engine protection bar for BMW K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) (1991)

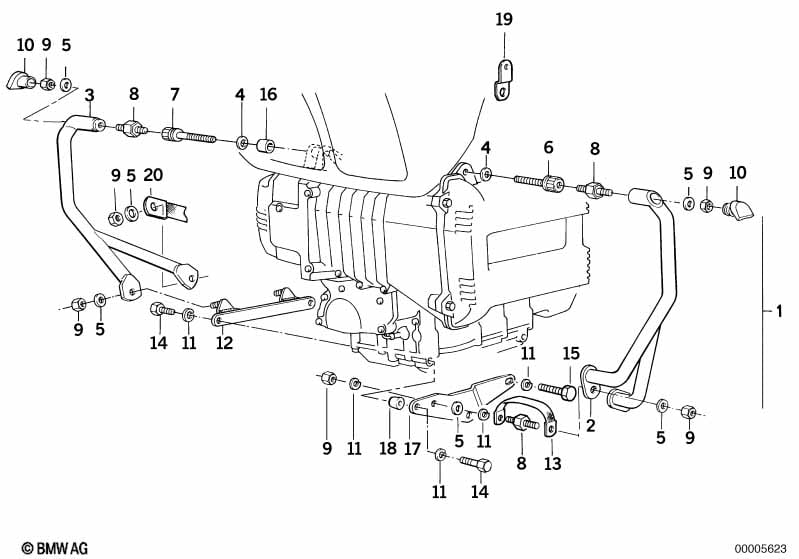

This Engine protection bar technical drawing provides a detailed breakdown of the assembly for the K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571). It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | not suitable for ENGINE SPOILER |
|||||||||
| 01 | Engine protection bar set | CR | 1 | 46712303181 | $451.14 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Engine protection bar set | SW | 1 | 46712303182 | $451.14 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Left engine protection bar | CR | 1 | 46712303175 | $259.42 | Shop at ECS Tuning | ||||
| 02 | Safety bar, left | 1 | 46712303177 | ENDED, +core | Shop at ECS Tuning | |||||
| 02 | Safety bar, left | SW | 1 | 46712303185 | $194.57 | +core | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 02 | Left engine protection bar | CR | 1 | 46712303135 | Shop at ECS Tuning | |||||
| 02 | Safety bar, left | 1 | 46712303137 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Safety bar, right | 1 | 46712303178 | ENDED, +core | Shop at ECS Tuning | |||||
| 03 | Safety bar, right | SW | 1 | 46712303186 | $194.57 | +core | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 03 | Right engine protection bar | CR | 1 | 46712303136 | $332.36 | Shop at ECS Tuning | ||||
| 03 | Safety bar, right | 1 | 46712303138 | ENDED, +core | Shop at ECS Tuning | |||||
| 04 | Washer | 10-200 HV-ZNNIV | 2 | 07119904168 | $8.35 | Shop at ECS Tuning | ||||
| 05 | Washer | 8,4X18X2MM | 7 | 07149180923 | Shop at ECS Tuning | |||||
| 06 | Screw | M10X65 | 1 | 46712303080 | $17.29 | ENDED | Shop at ECS Tuning | |||
| 07 | Screw | M10X65 | 1 | 46712303080 | $17.29 | ENDED | Shop at ECS Tuning | |||
| 08 | Rubber Mounting | 4 | 46718554872 | Shop at ECS Tuning | ||||||
| 09 | Self-locking hex nut | M8-8-ZNS3 | 6 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| 10 | Cap | 2 | 46712300161 | $2.80 | Shop at ECS Tuning | |||||
| 11 | Wave washer | 8,4X15-ZNS3 | 6 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Rubber Mounting | 1 | 46712303068 | $42.21 | ENDED | Shop at ECS Tuning | ||||
| 13 | Earth strap | 2 | 65311459559 | $6.93 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M8X20-ZNNIV SI | 3 | 07119903039 | Shop at ECS Tuning | |||||
| 17 | Bracket | 1 | 46712315668 | $14.54 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Spacer bush | 1 | 46712315671 | $4.86 | Shop at ECS Tuning | |||||
| -- | Self-locking hex nut | M8-8-ZNS3 | 2 | 07129904002 | $0.18 | Shop at ECS Tuning | ||||
| -- | Wave washer | 8,4X15-ZNS3 | 1 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 18 | Spacer bush | 1 | 46712315671 | $4.86 | Shop at ECS Tuning | |||||
