Glazing for BMW 5 Series E12 520 (1981)

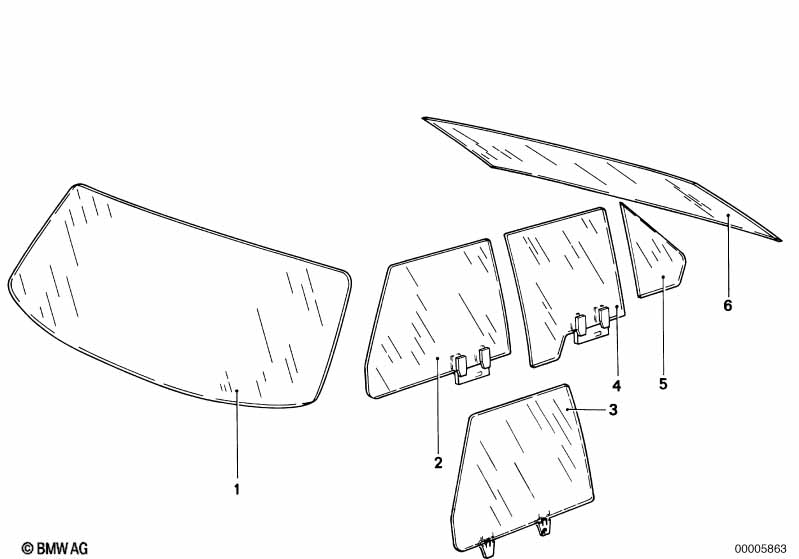

This Glazing technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front windshield gold bronze | 1 | 51311863187 | ENDED | Shop at ECS Tuning | |||||
| 03 | Door window gold bronze front left | 1 | 08/1978 | 51321868825 | $103.79 | ENDED | Shop at ECS Tuning | |||
| 03 | Door window gold bronze front right | 1 | 08/1978 | 51321868826 | $103.79 | ENDED | Shop at ECS Tuning | |||
| 04 | Door window gold bronze rear left | 1 | 51341863193 | $159.59 | ENDED | Shop at ECS Tuning | ||||
| 04 | Door window gold bronze rear right | 1 | 51341863194 | $103.79 | ENDED | Shop at ECS Tuning | ||||
| 05 | Fixed door window, Gold Bronze, left | 1 | 51341863197 | $51.89 | Shop at ECS Tuning | |||||
| 05 | Fixed door window, Gold Bronze, right | 1 | 51341863198 | $51.89 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 520 Glazing?
- This technical diagram illustrates the Glazing within the Vehicle trim group for the 5 Series E12 520 produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Front windshield gold bronze (Part #51311863187).
- Which models use the hardware listed in this Glazing?
- The hardware and components featured in the Glazing are specific to the 5 Series E12 520 produced during 1981. These technical specifications ensure that parts like the Front windshield gold bronze (51311863187) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Glazing assembly?
- Each item in the Glazing corresponds to the numbered list below the illustration. For the 5 Series E12 520, you can identify the Front windshield gold bronze by locating its position on the schematic, which then links to the official BMW part number 51311863187 for the Vehicle trim section.
