Window mounting parts for BMW 6 Series E24 635CSi (1989)

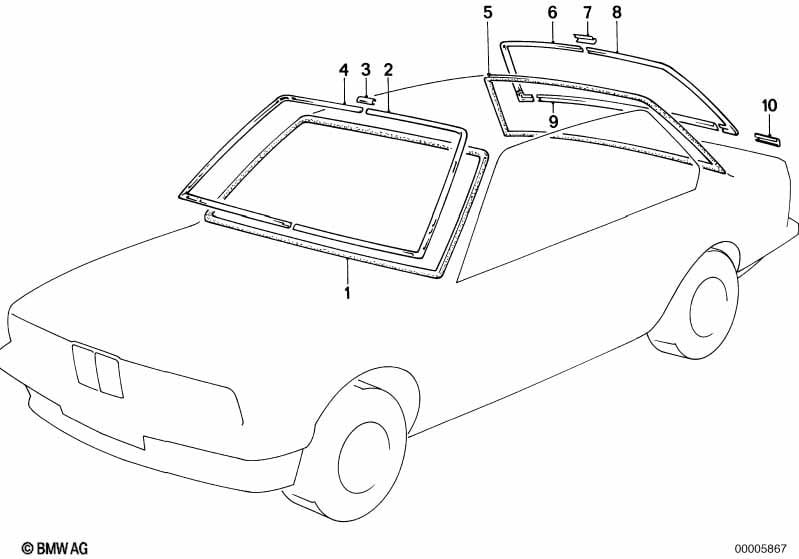

This Window mounting parts technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sealing frame | 1 | 51311869278 | $101.49 | Shop at ECS Tuning | |||||
| 02 | Decorative frame left | 1 | 51311843777 | $145.18 | Shop at ECS Tuning | |||||
| 02 | Decorative frame left | SCHWARZ | 1 | 51311961655 | $145.18 | Shop at ECS Tuning | ||||
| 03 | Cup | 2 | 51311800068 | $23.19 | Shop at ECS Tuning | |||||
| 03 | Cup | SCHWARZ | 2 | 51311959713 | $10.83 | Shop at ECS Tuning | ||||
| 04 | Decorative frame right | 1 | 51311843778 | $145.18 | Shop at ECS Tuning | |||||
| 04 | Decorative frame right | SCHWARZ | 1 | 51311961656 | $145.18 | ENDED | Shop at ECS Tuning | |||
| 05 | Weatherstrip | 1 | 51311839116 | $157.44 | Shop at ECS Tuning | |||||
| 06 | Decorative frame right | 1 | 51311843890 | $103.66 | ENDED | Shop at ECS Tuning | ||||
| 06 | Decorative frame right | SCHWARZ | 1 | 51311961658 | $93.72 | Shop at ECS Tuning | ||||
| 07 | Cup | X | 51311846419 | $3.60 | Shop at ECS Tuning | |||||
| 07 | Cup | SCHWARZ | X | 51311961660 | $3.57 | Shop at ECS Tuning | ||||
| 08 | Decorative frame left | 1 | 51311843889 | $103.66 | ENDED | Shop at ECS Tuning | ||||
| 08 | Decorative frame left | SCHWARZ | 1 | 51311961657 | $93.72 | ENDED | Shop at ECS Tuning | |||
| 09 | Decorative frame bottom | 1 | 51311839118 | $68.36 | ENDED | Shop at ECS Tuning | ||||
| 09 | Decorative frame bottom | SCHWARZ | 1 | 51311961659 | $68.36 | ENDED | Shop at ECS Tuning | |||
| 10 | Cup | 2 | 51311839363 | $4.83 | Shop at ECS Tuning | |||||
| 10 | Cup | SCHWARZ | 2 | 51311961661 | $4.83 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
