Glazing for BMW 7 Series E23 728i (1986)

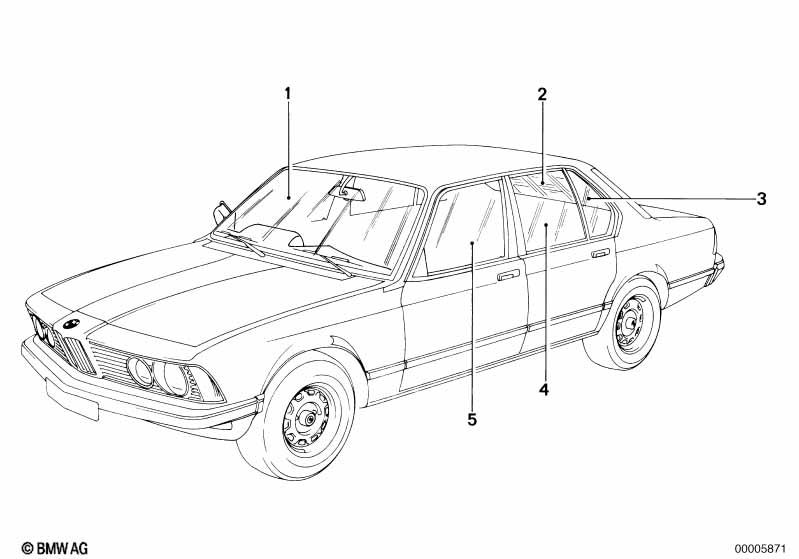

This Glazing technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Green windshield | 1 | 51313905512 | Shop at ECS Tuning | ||||||
| 02 | Rear window | 1 | 04/1983 | 51313907246 | Shop at ECS Tuning | |||||
| 03 | Fixed door window, green, left | 1 | 51343907251 | Shop at ECS Tuning | ||||||
| 03 | Fixed door window, green, right | 1 | 51343907252 | Shop at ECS Tuning | ||||||
| 04 | Door window, rear left | 1 | 04/1983 | 51343908198 | Shop at ECS Tuning | |||||
| 04 | Door window green rear right | 1 | 04/1983 | 51343908199 | Shop at ECS Tuning | |||||
| 05 | Door window green front left | 1 | 04/1983 | 51323907247 | Shop at ECS Tuning | |||||
| 05 | Door window green front right | 1 | 04/1983 | 51323907248 | Shop at ECS Tuning | |||||
| 05 | Door window green front left | 1 | 04/1983 | 51323908358 | ENDED | Shop at ECS Tuning | ||||
| 05 | Door window green front right | 1 | 04/1983 | 51323908359 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
