Window mounting parts for BMW 7 Series E23 728i (1986)

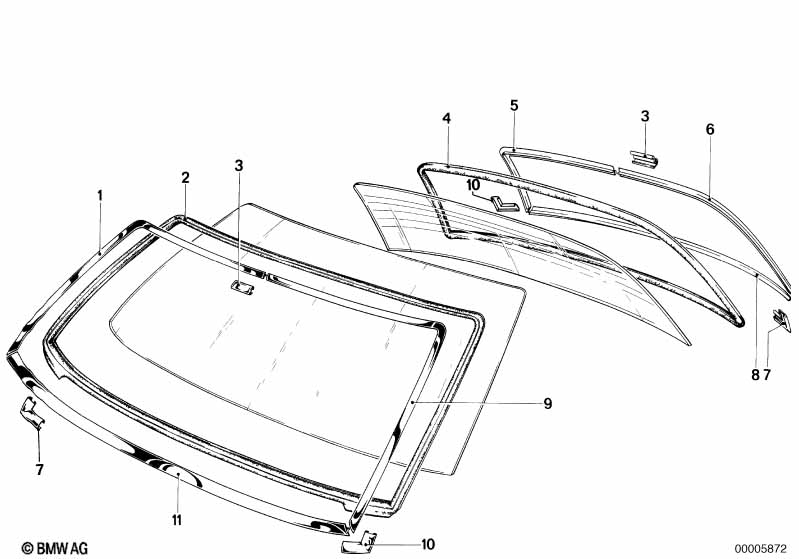

This Window mounting parts technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Decorative frame right | 1 | 51311846450 | $56.08 | Shop at ECS Tuning | |||||
| 02 | Weatherstrip | 1 | 01/1980 | 51311871254 | $97.30 | ENDED | Shop at ECS Tuning | |||
| 03 | Cup | 2 | 51311800068 | $23.19 | Shop at ECS Tuning | |||||
| 04 | Weatherstrip | 1 | 01/1980 | 51311871978 | $97.30 | ENDED | Shop at ECS Tuning | |||
| 05 | Decorative frame right | X | 51311846384 | $118.48 | ENDED | Shop at ECS Tuning | ||||
| 06 | Decorative frame left | 1 | 51311846383 | $118.48 | Shop at ECS Tuning | |||||
| 07 | Cup | 1 | 01/1980 | 51311854023 | $5.03 | Shop at ECS Tuning | ||||
| 08 | Decorative frame bottom | 1 | 01/1980 | 51311854022 | $138.64 | ENDED | Shop at ECS Tuning | |||
| 09 | Decorative frame left | 1 | 51311846449 | $56.08 | Shop at ECS Tuning | |||||
| 10 | Cup | 2 | 01/1980 | 51311854023 | $5.03 | Shop at ECS Tuning | ||||
| 11 | Decorative frame bottom | 1 | 01/1980 | 51311854021 | $51.86 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E23 728i Window mounting parts?
- This technical diagram illustrates the Window mounting parts within the Vehicle trim group for the 7 Series E23 728i produced during 1986. It provides a detailed exploded view of the components, identifying key parts such as the Decorative frame right (Part #51311846450).
- Which models use the hardware listed in this Window mounting parts?
- The hardware and components featured in the Window mounting parts are specific to the 7 Series E23 728i produced during 1986. These technical specifications ensure that parts like the Decorative frame right (51311846450) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Window mounting parts assembly?
- Each item in the Window mounting parts corresponds to the numbered list below the illustration. For the 7 Series E23 728i, you can identify the Decorative frame right by locating its position on the schematic, which then links to the official BMW part number 51311846450 for the Vehicle trim section.
