Front window guide for BMW 5 Series E28 528i (1987)

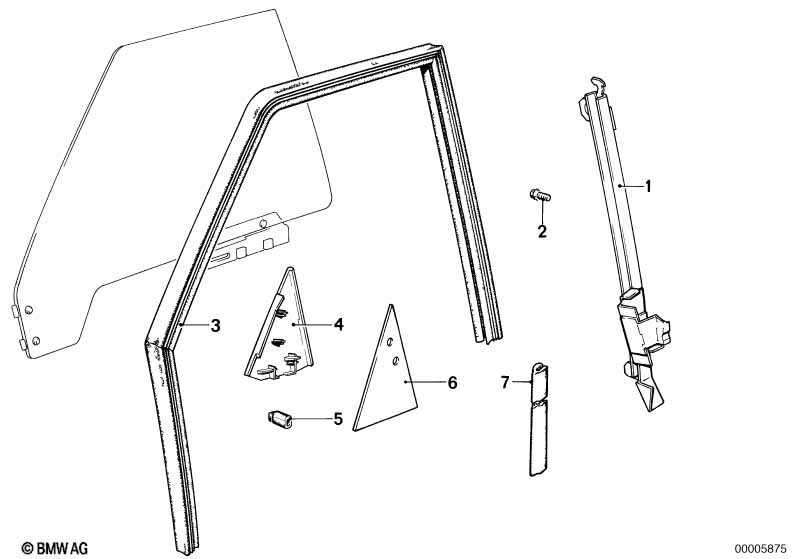

This Front window guide technical drawing provides a detailed breakdown of the assembly for the 5 Series E28 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1987.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide rail rear left | 1 | 51321939843 | $21.47 | Shop at ECS Tuning | |||||
| 01 | Guide rail rear right | 1 | 51321939844 | $21.47 | Shop at ECS Tuning | |||||
| For vehicles with Central locking system ONLY APPLIES TO CO-DRIVERS SIDE |
=Yes |
|||||||||
| 01 | Guide rail rear left | 1 | 51321925787 | $19.75 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Central locking system Driver's side |
=Yes |
|||||||||
| 01 | Guide rail rear right | 1 | 05/1985 | 51321930972 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt | M6X12-8.8-ZNNIV | 2 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 03 | Left One-piece window guide | 1 | 51321889787 | $66.77 | Shop at ECS Tuning | |||||
| 03 | Right One-piece window guide | 1 | 51321889788 | $66.77 | Shop at ECS Tuning | |||||
| 04 | Covering inner left | 1 | 51321880549 | $4.91 | Shop at ECS Tuning | |||||
| 04 | Covering inner right | 1 | 51321880550 | $4.91 | Shop at ECS Tuning | |||||
| 05 | Plug connection female | 4 | 51321876540 | $0.30 | Shop at ECS Tuning | |||||
| 06 | Gasket | 2 | 51321904326 | $35.42 | Shop at ECS Tuning | |||||
| 07 | Edge protection | 85MM | 2 | 51321920825 | $5.31 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
