Glazing for BMW 3 Series E30 325i (1989)

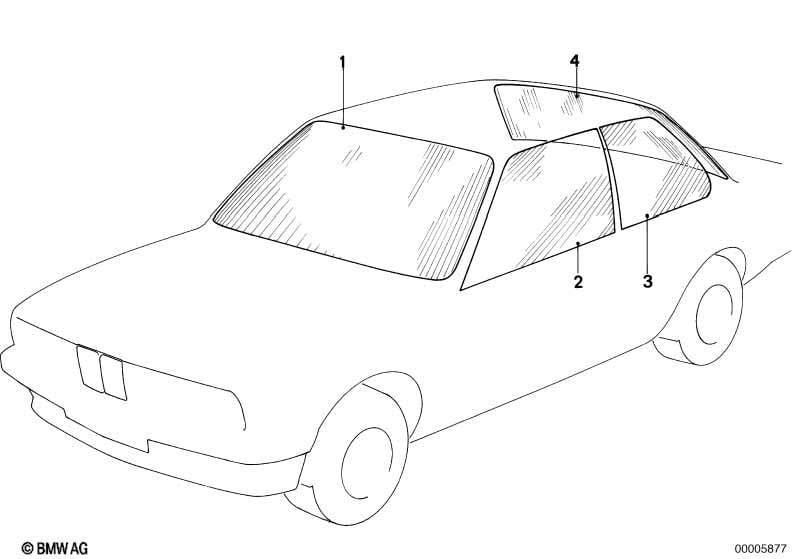

This Glazing technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Green windscreen, green shade band | 1 | 51311884397 | $432.31 | Shop at ECS Tuning | |||||
| 02 | Door window green front left | 1 | 04/1988 | 51321961707 | $142.82 | ENDED | Shop at ECS Tuning | |||
| 02 | Door window green front right | 1 | 04/1988 | 51321961708 | $142.82 | ENDED | Shop at ECS Tuning | |||
| 03 | Side window, green, left | 1 | 51361888455 | $91.47 | Shop at ECS Tuning | |||||
| 03 | Side window green right | 1 | 51361888456 | $91.47 | Shop at ECS Tuning | |||||
| 04 | Rear window green | 1 | 51318106579 | $351.90 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
