Side window, fixed position for BMW 3 Series E30 325i (1989)

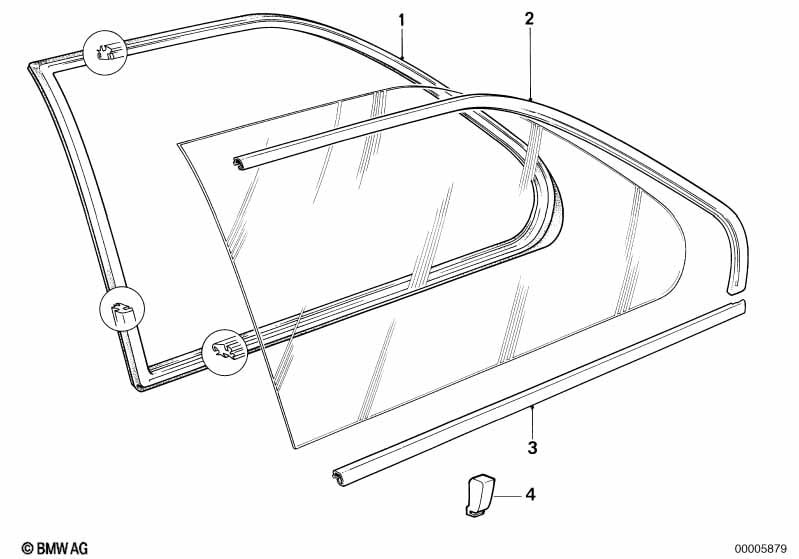

This Side window, fixed position technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window sealing rear left | 1 | 51361888325 | $114.71 | Shop at ECS Tuning | |||||
| 01 | Window sealing rear right | 1 | 51361888326 | $114.71 | Shop at ECS Tuning | |||||
| 02 | Moulding upper left | 1 | 51361904541 | $47.95 | ENDED | Shop at ECS Tuning | ||||
| 02 | Moulding upper right | 1 | 51361904542 | $48.98 | ENDED | Shop at ECS Tuning | ||||
| 02 | Moulding upper left | SCHWARZ | 1 | 51361932383 | $53.01 | ENDED | Shop at ECS Tuning | |||
| 02 | Moulding upper right | SCHWARZ | 1 | 51361932384 | $48.98 | ENDED | Shop at ECS Tuning | |||
| 03 | Moulding lower left | 1 | 51361884287 | $34.43 | ENDED | Shop at ECS Tuning | ||||
| 03 | Moulding lower right | 1 | 51361884288 | $56.64 | ENDED | Shop at ECS Tuning | ||||
| 03 | Moulding lower left | SCHWARZ | 1 | 51361932387 | $33.29 | ENDED | Shop at ECS Tuning | |||
| 03 | Moulding lower right | SCHWARZ | 1 | 51361932388 | $35.71 | ENDED | Shop at ECS Tuning | |||
| 04 | Insert | 1 | 51368106103 | $0.85 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
