Vent window for BMW 3 Series E30 325i (1989)

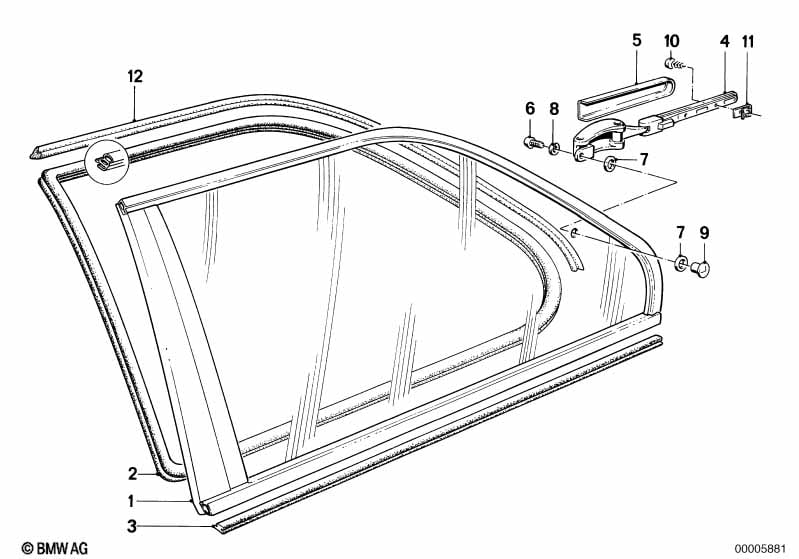

This Vent window technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vent window green left | 1 | 09/1987 | 51361979237 | $198.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Vent window green right | 1 | 09/1987 | 51361979238 | $198.02 | ENDED | Shop at ECS Tuning | |||
| 01 | Vent window green left | 1 | 09/1987 | 51368103187 | $324.53 | Shop at ECS Tuning | ||||
| 01 | Vent window green right | 1 | 09/1987 | 51368103188 | $324.53 | Shop at ECS Tuning | ||||
| 02 | Window sealing | 2 | 51361904827 | $53.02 | Shop at ECS Tuning | |||||
| 03 | Synthetic strip | 2 | 51361906566 | $3.17 | Shop at ECS Tuning | |||||
| 04 | Hinge | 2 | 51361888480 | $36.09 | Shop at ECS Tuning | |||||
| 05 | Covering cap | 2 | 51361826818 | $0.65 | ENDED | Shop at ECS Tuning | ||||

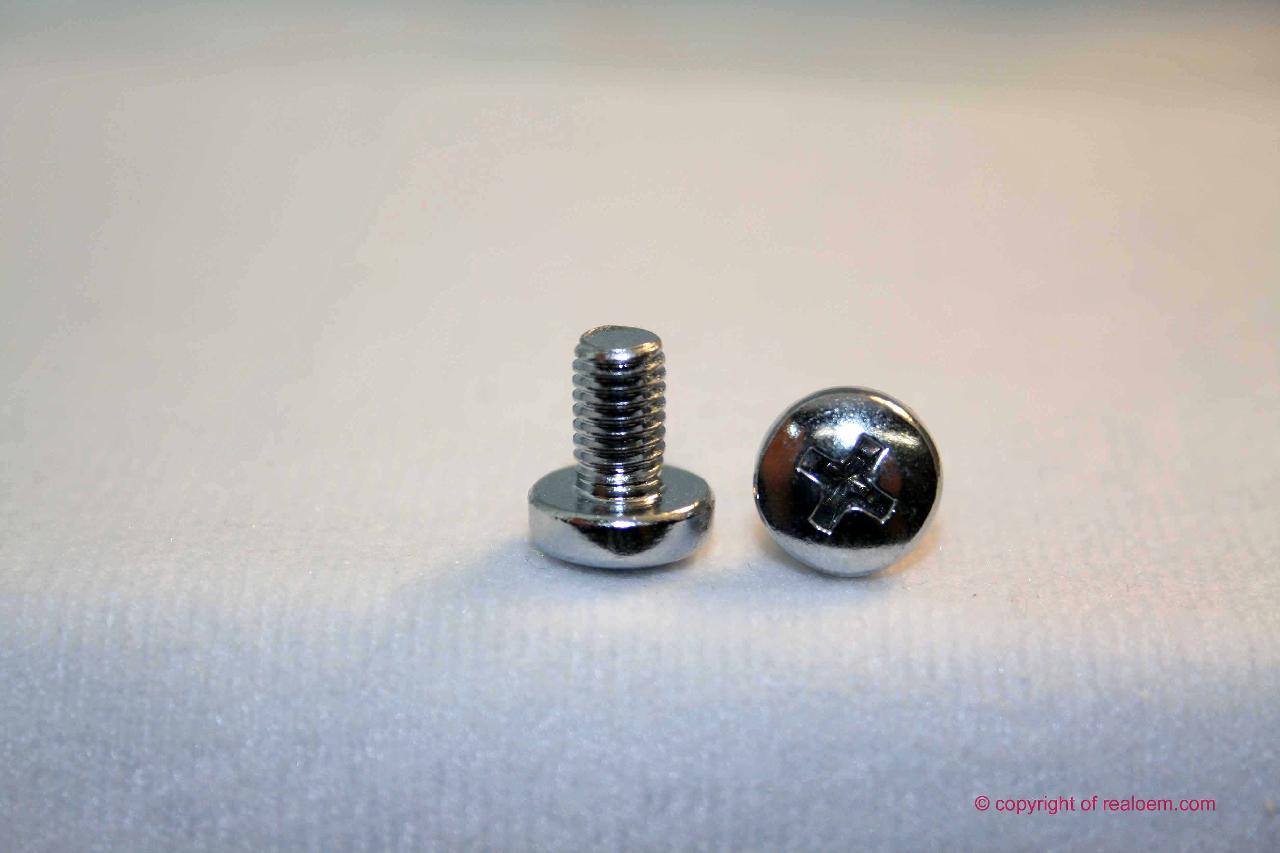

| 06 | Fillister head screw | M5X8 | 2 | 07119907623 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Gasket | 2 | 51367040572 | $0.19 | Shop at ECS Tuning | |||||
| 08 | Spring washer | B5 | 2 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Nut | SCHWARZ | 2 | 09/1987 | 51361942192 | $2.05 | Shop at ECS Tuning | |||
| 10 | Fillister head self-tapping screw | ST4,8X13 | 4 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 10 | Fillister head self-tapping screw | ST4,8X16 Z2 | 4 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 11 | Plug-in nut | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 12 | Sealing strip | 2 | 06/1987 | 51361924994 | $3.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
