Glazing for BMW 3 Series E30 325i (1988)

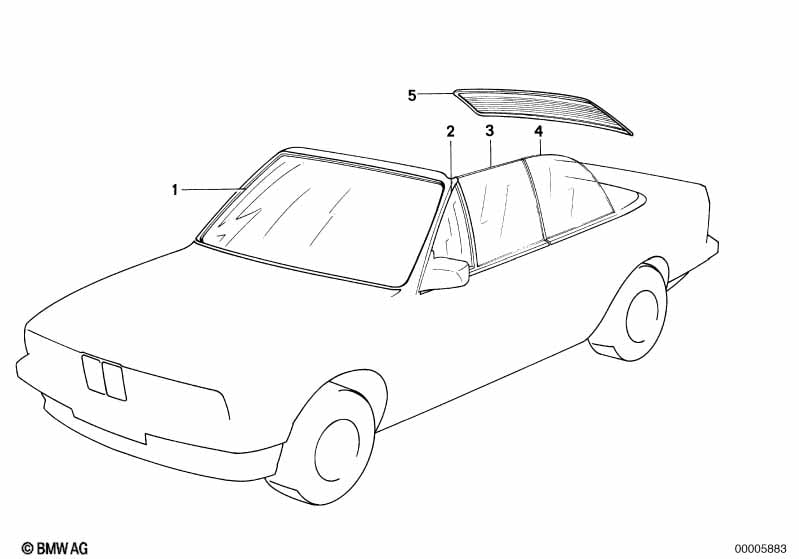

This Glazing technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1988.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front windshield clear | 1 | 51311935626 | Shop at ECS Tuning | ||||||
| 01 | Green windshield | 1 | 51311935629 | $335.92 | ENDED | Shop at ECS Tuning | ||||
| 01 | Green windscreen, green shade band | 1 | 51311935631 | $432.28 | Shop at ECS Tuning | |||||
| 02 | Fixed door window, transp. left | 1 | 51321922711 | Shop at ECS Tuning | ||||||
| 02 | Fixed door window, transp. right | 1 | 51321922712 | Shop at ECS Tuning | ||||||
| 02 | Fixed door window, green, left | 1 | 51321933491 | $73.80 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fixed door window, green, right | 1 | 51321933492 | $73.80 | Shop at ECS Tuning | |||||
| 03 | Door window clear front left | 1 | 51321933785 | ENDED | Shop at ECS Tuning | |||||
| 03 | Door window clear front right | 1 | 51321933786 | Shop at ECS Tuning | ||||||
| 03 | Door window green front left | 1 | 51321937975 | $142.82 | Shop at ECS Tuning | |||||
| 03 | Door window green front right | 1 | 51321937976 | $142.82 | Shop at ECS Tuning | |||||
| 04 | Side windwow clear left | 1 | 51361929821 | $93.19 | Shop at ECS Tuning | |||||
| 04 | Side window clear right | 1 | 51361929822 | $97.10 | Shop at ECS Tuning | |||||
| 04 | Side window, green, left | 1 | 51361933503 | $177.28 | Shop at ECS Tuning | |||||
| 04 | Side window green right | 1 | 51361933504 | $177.28 | Shop at ECS Tuning | |||||
| 05 | Rear window | E30-CABRIO | 1 | 09/1991 | 81229407641 | $694.94 | ENDED | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Terokal- 8760, 11521Y | 800G DOSE | 1 | 09/1991 | 83190153050 | ENDED | Shop at ECS Tuning | |||
| -- | Hardener | 200 T, 40G | 1 | 09/1991 | 83199407767 | ENDED | Shop at ECS Tuning | |||
| -- | Klebstoff Terokal Transparent | 680G | 1 | 09/1991 | 81229407576 | ENDED | Shop at ECS Tuning | |||
| -- | Installation tools | F. CABRIODACH | 1 | 09/1991 | 81229407643 | $46.64 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO HARDTOP |
||||||||||
| 05 | Rear window green | 1 | 51311942920 | $397.36 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
