Door window lifting mechanism front for BMW 3 Series E21 320 (1979)

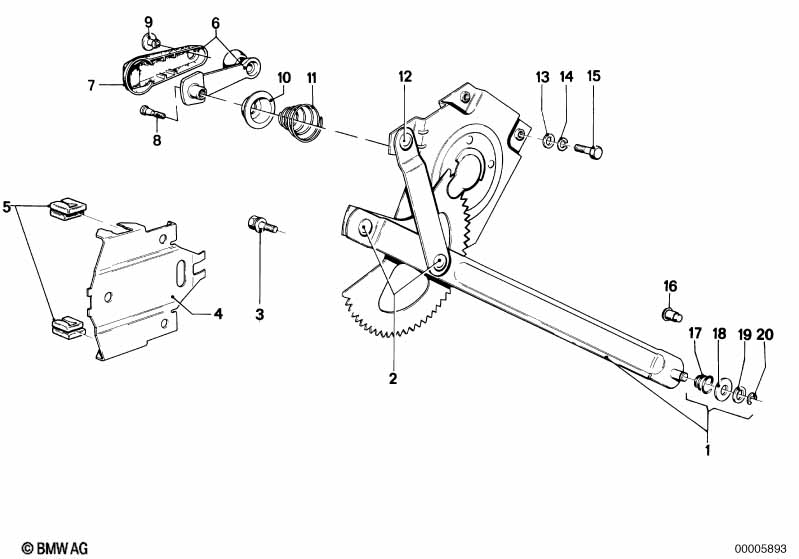

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter front left | 1 | 51321822901 | $61.29 | Shop at ECS Tuning | |||||
| 01 | Window lifter front right | 1 | 51321822902 | $61.15 | Shop at ECS Tuning | |||||
| 02 | Rivet | 4 | 51321829995 | $0.97 | Shop at ECS Tuning | |||||
| 03 | Hex bolt with washer | M6X16-U2-ZNS3 | 4 | 07119902913 | Shop at ECS Tuning | |||||
| 04 | Holder | 2 | 51321809844 | $5.23 | Shop at ECS Tuning | |||||
| 05 | Sliding piece | 4 | 51321809881 | $1.30 | Shop at ECS Tuning | |||||
| 06 | Window crank | SCHWARZ | 2 | 51321846232 | $70.29 | ENDED | Shop at ECS Tuning | |||
| 07 | Cover | 2 | 51321846234 | $0.79 | Shop at ECS Tuning | |||||
| 08 | Conical screw | 2 | 51211800790 | $0.67 | Shop at ECS Tuning | |||||
| 09 | Cap | 2 | 51321846236 | $0.55 | ENDED | Shop at ECS Tuning | ||||
| 10 | Stop disk | SCHWARZ | 2 | 51321819852 | $6.12 | Shop at ECS Tuning | ||||
| 11 | Conical spring | 2 | 51321870460 | $1.19 | Shop at ECS Tuning | |||||
| 12 | Rivet | 2 | 51321829996 | $0.97 | Shop at ECS Tuning | |||||
| 13 | Washer | A6,4-200HV-ZNS3 | 8 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 14 | Spring washer | B6 | 8 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 15 | Hex bolt | M6X12-8.8-ZNNIV | 8 | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 16 | Pin | 2 | 51321860993 | $0.65 | Shop at ECS Tuning | |||||
| 17 | Spring | 2 | 51321836322 | $0.58 | Shop at ECS Tuning | |||||
| 18 | Washer | 2 | 51321836323 | $0.53 | Shop at ECS Tuning | |||||
| 19 | Washer | 2 | 51321836324 | $0.55 | Shop at ECS Tuning | |||||
| 20 | Circlip | 7,0 | 2 | 07119905858 | $0.96 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
