Door window lifting mechanism front for BMW 3 Series E21 320i (1977)

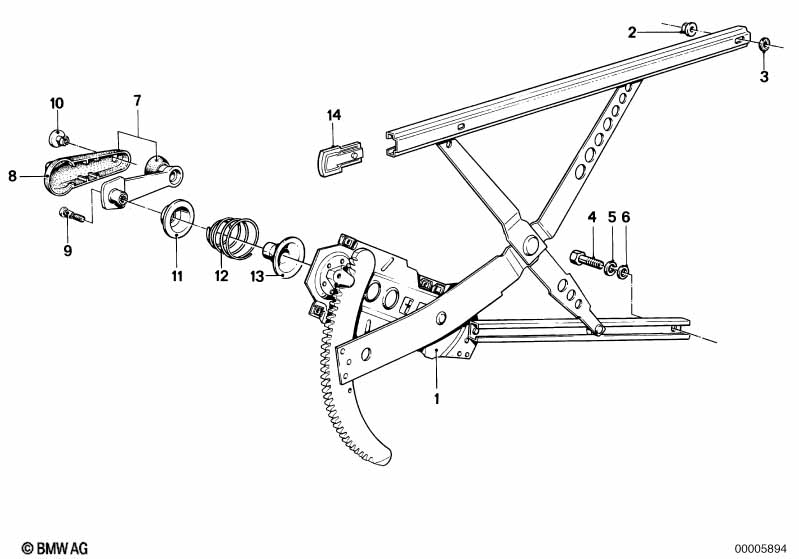

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter front left | 1 | 51321867901 | $78.38 | Shop at ECS Tuning | |||||
| 01 | Window lifter front right | 1 | 51321867902 | $78.38 | Shop at ECS Tuning | |||||
| 02 | Self-locking hex nut | M6 | 4 | 51417053138 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Rubber washer | 4 | 51185480151 | $0.57 | Shop at ECS Tuning | |||||
| 04 | Hex bolt | M6X12-8.8-ZNNIV | X | 07119905524 | $0.27 | Shop at ECS Tuning | ||||
| 05 | Spring washer | B6 | X | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-200HV-ZNS3 | X | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Window crank | SCHWARZ | 2 | 51321846232 | $70.29 | ENDED | Shop at ECS Tuning | |||
| 08 | Cover | 2 | 51321846234 | $0.79 | Shop at ECS Tuning | |||||
| 09 | Conical screw | 2 | 51211800790 | $0.67 | Shop at ECS Tuning | |||||
| 10 | Cap | 2 | 51321846236 | $0.55 | ENDED | Shop at ECS Tuning | ||||
| 11 | Stop disk | SCHWARZ | 2 | 51321819852 | $6.12 | Shop at ECS Tuning | ||||
| 12 | Conical spring | 2 | 02/1981 | 51321870460 | $1.19 | Shop at ECS Tuning | ||||
| 14 | Sliding piece | 2 | 51321871969 | $1.75 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
