Front window guide for BMW 5 Series E12 520i (1976)

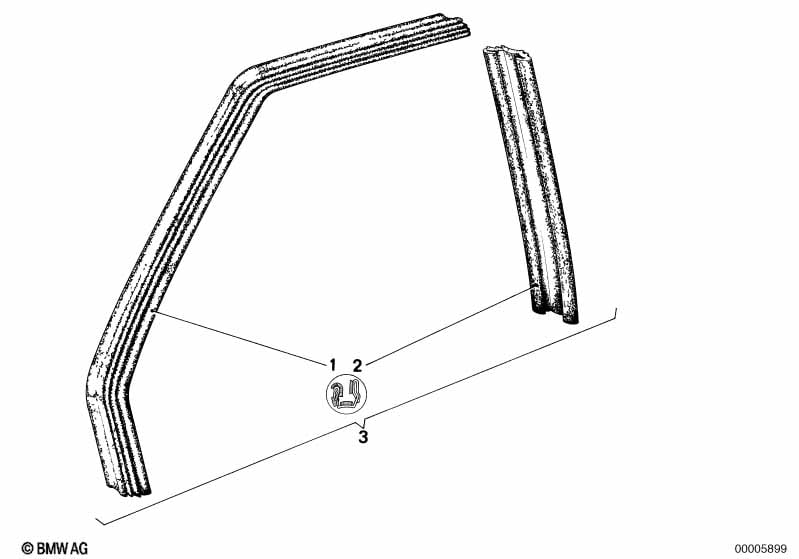

This Front window guide technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1976.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| DOOR WINDOW LIFTING MECHANISM | ||||||||||
| 01 | Left One-piece window guide | 2 | 51321867897 | $89.55 | Shop at ECS Tuning | |||||
| 02 | Front left window guide | 1 | 51321801247 | ENDED | Shop at ECS Tuning | |||||
| 02 | Front right window guide | 1 | 51321801248 | ENDED | Shop at ECS Tuning | |||||
| 02 | Left One-piece window guide | 1 | 51321867897 | $89.55 | Shop at ECS Tuning | |||||
| 02 | Right One-piece window guide | 1 | 51321867898 | $89.55 | ENDED | Shop at ECS Tuning | ||||
| 03 | Left One-piece window guide | 1 | 51321867897 | $89.55 | Shop at ECS Tuning | |||||
| 03 | Right One-piece window guide | 1 | 51321867898 | $89.55 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
