Front window guide for BMW 6 Series E24 633CSi

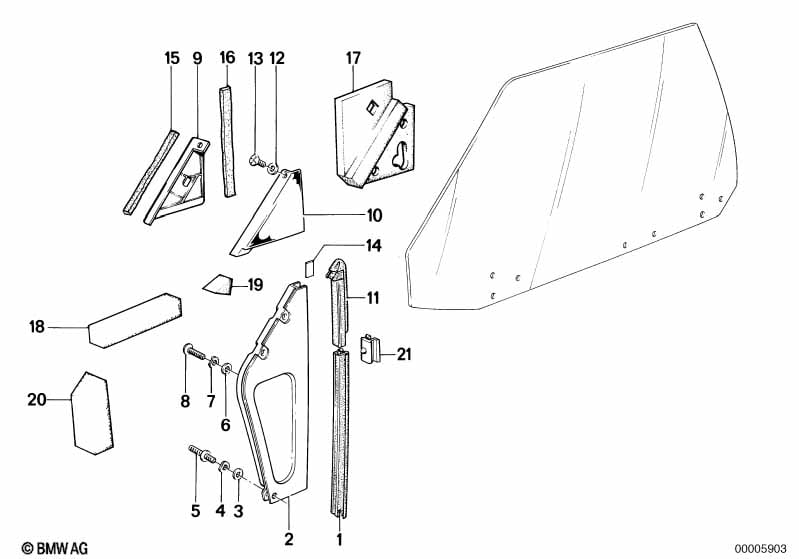

This Front window guide technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window guide | 2 | 51211839310 | ENDED | Shop at ECS Tuning | |||||
| 02 | Front left window guide | 1 | 51321965835 | $211.92 | Shop at ECS Tuning | |||||
| 02 | Front right window guide | 1 | 51321965836 | $211.92 | ENDED | Shop at ECS Tuning | ||||
| 03 | Washer | 8,4X24X2-ZNS3 | 2 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Grub screw | 2 | 51326754380 | $2.62 | ENDED | Shop at ECS Tuning | ||||
| 06 | Washer | A6,4-ZNNIV SI | X | 07119904202 | Shop at ECS Tuning | |||||
| 07 | Wave washer | B6 | 4 | 07119932072 | $0.09 | ENDED | Shop at ECS Tuning | |||
| 07 | Spring washer Black | B6-ZN | 4 | 07119932073 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Washer | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 07 | Wave washer | B6-ZNS3 | 4 | 07119904496 | $1.78 | ENDED | Shop at ECS Tuning | |||
| 08 | Fillister head screw | 4X18 | 4 | 07119907658 | ENDED | Shop at ECS Tuning | ||||
| 09 | Covering left | 1 | 51211861057 | $21.34 | Shop at ECS Tuning | |||||
| 09 | Covering right | 1 | 51211861058 | $21.34 | Shop at ECS Tuning | |||||
| 10 | Moulding window frame front right | SCHWARZ | 1 | 51131914060 | $48.92 | Shop at ECS Tuning | ||||
| 11 | Front left window guide | 1 | 04/1986 | 51211861097 | $101.32 | ENDED | Shop at ECS Tuning | |||
| 11 | Front right window guide | 1 | 04/1986 | 51211861098 | $101.32 | Shop at ECS Tuning | ||||
| 12 | Wave washer | B5 | 3 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Fillister head screw | M5X10 | 3 | 07119907639 | $0.40 | Shop at ECS Tuning | ||||
| 14 | Gasket | 2 | 51211864928 | ENDED | Shop at ECS Tuning | |||||
| 15 | Sealing strip | 2 | 51211864924 | ENDED | Shop at ECS Tuning | |||||
| 16 | sealing | 2 | 51211864926 | ENDED | Shop at ECS Tuning | |||||
| 17 | Gasket left | 1 | 51211914047 | $14.79 | ENDED | Shop at ECS Tuning | ||||
| 17 | Gasket right | 1 | 51211914048 | $14.79 | ENDED | Shop at ECS Tuning | ||||
| 18 | sealing | 2 | 51211914050 | $1.16 | ENDED | Shop at ECS Tuning | ||||
| 19 | Gasket | 2 | 51211914051 | $1.22 | ENDED | Shop at ECS Tuning | ||||
| 20 | Gasket | 2 | 51211914052 | $9.97 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
