Support window rail for BMW 6 Series E24 633CSi

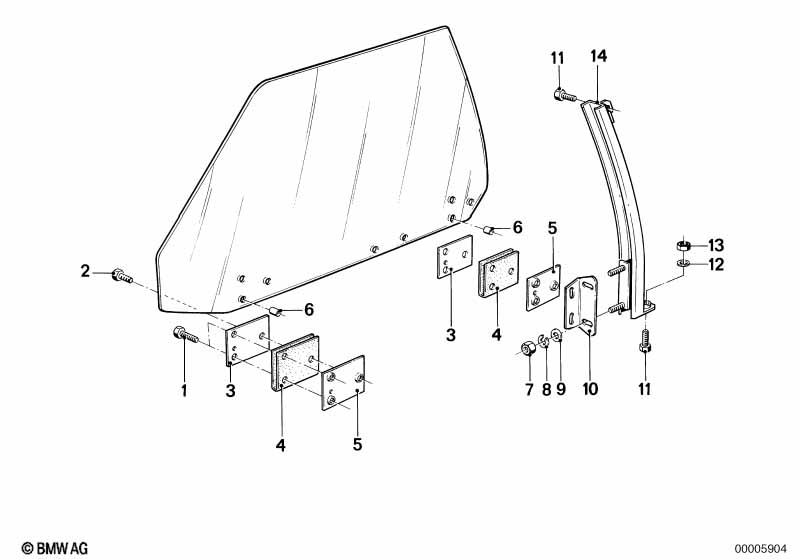

This Support window rail technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Hex bolt with washer | M8X16-Z3-2 | 8 | 03/1982 | 07119915071 | $0.47 | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M6X16-Z4-2 | 4 | 03/1982 | 07119915024 | $1.89 | Shop at ECS Tuning | |||
| 03 | Bracket left | 2 | 03/1982 | 51321843627 | $6.02 | ENDED | Shop at ECS Tuning | |||
| 03 | Bracket right | 2 | 03/1982 | 51321843628 | $5.47 | ENDED | Shop at ECS Tuning | |||
| 04 | Distance rubber | 4 | 03/1982 | 51321843631 | $4.94 | ENDED | Shop at ECS Tuning | |||
| 05 | Bracket left | 2 | 03/1982 | 51321843629 | $10.20 | Shop at ECS Tuning | ||||
| 05 | Bracket right | 2 | 03/1982 | 51321843630 | $9.49 | Shop at ECS Tuning | ||||
| 06 | Bush | X | 03/1982 | 51321843633 | $3.06 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M6-8-ZNNIV SI | 8 | 03/1982 | 07119905543 | $0.38 | Shop at ECS Tuning | |||
| 08 | Spring washer | B6 | X | 03/1982 | 07119933082 | $0.09 | Shop at ECS Tuning | |||
| 09 | Washer | A6,4-ZNNIV SI | X | 03/1982 | 07119904202 | Shop at ECS Tuning | ||||
| 10 | Holder | 4 | 03/1982 | 51321843620 | ENDED | Shop at ECS Tuning | ||||
| 11 | Hex bolt with washer | M6X16-Z3-2 | 8 | 03/1982 | 07119915021 | $0.47 | Shop at ECS Tuning | |||
| 12 | Washer | A6,4-ZNNIV SI | 1 | 03/1982 | 07119904202 | Shop at ECS Tuning | ||||
| 13 | Self-locking hex nut | M6 | 1 | 03/1982 | 07147153450 | $0.47 | Shop at ECS Tuning | |||
| 14 | Front left window guide | 2 | 03/1982 | 51321843645 | ENDED | Shop at ECS Tuning | ||||
| 14 | Front right window guide | 2 | 03/1982 | 51321843646 | $273.95 | ENDED | Shop at ECS Tuning |
