Door window lifting mechanism front for BMW 6 Series E24 633CSi (1982)

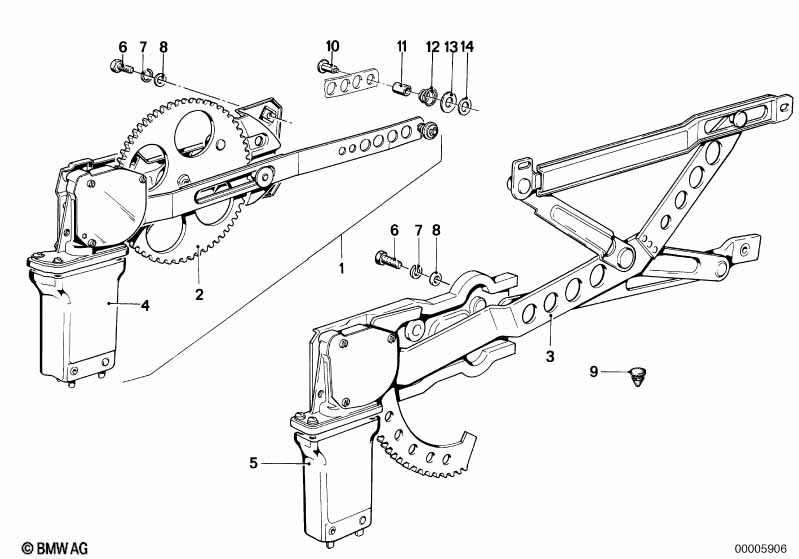

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Electr.window lifter front left | 1 | 04/1978 | 09/1983 | 51331868197 | ENDED | Shop at ECS Tuning | |||
| 03 | Electr.window lifter front left | 1 | 04/1978 | 51331921505 | $386.48 | Shop at ECS Tuning | ||||
| 03 | Electr.window lifter front right | 1 | 04/1978 | 51331921506 | $386.48 | ENDED | Shop at ECS Tuning | |||
| 05 | Electr.drive left | 1 | 04/1978 | 09/1983 | 51331369249 | $509.18 | Shop at ECS Tuning | |||
| 05 | Electr.drive right | 1 | 04/1978 | 09/1983 | 51331369250 | $509.18 | Shop at ECS Tuning | |||
| 06 | Hex bolt | M6X10-8.8-ZNS3 | X | 07119904633 | $0.20 | Shop at ECS Tuning | ||||
| 07 | Spring washer | B6 | X | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 08 | Washer | A6,4-200HV-ZNS3 | X | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Stopper top | 1 | 04/1978 | 51331836325 | $5.43 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
