Door window lifting mechanism front for BMW 7 Series E23 735i (1982)

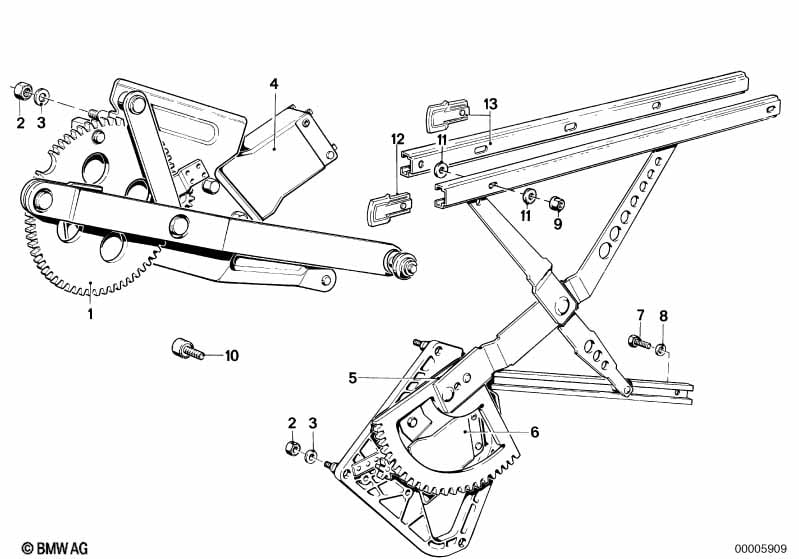

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 735i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1982.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex nut | M6-8-ZNNIV SI | X | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | A6,4-ZNNIV SI | X | 07119904202 | Shop at ECS Tuning | |||||
| 05 | Electr.window lifter front left | 1 | 08/1978 | 51331868187 | $94.06 | Shop at ECS Tuning | ||||
| 05 | Electr.window lifter front right | 1 | 08/1978 | 51331868188 | $94.06 | Shop at ECS Tuning | ||||
| 06 | Electr.drive right | 1 | 08/1978 | 09/1983 | 51331369238 | $338.64 | ENDED | Shop at ECS Tuning | ||
| 07 | Hex bolt | M6X12-8.8-ZNNIV | X | 08/1978 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 08 | Washer | A6,4-200HV-ZNS3 | X | 08/1978 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 09 | Self-locking hex nut | M6 | X | 08/1978 | 51417053138 | $0.38 | Shop at ECS Tuning | |||
| 11 | Rubber washer | X | 51185480151 | $0.57 | Shop at ECS Tuning | |||||
| 12 | Sliding piece | 2 | 51321871969 | $1.75 | Shop at ECS Tuning | |||||
| 13 | Guide rail | X | 51321879799 | $6.45 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
