Door window lifting mechanism front for BMW 3 Series E30 325i (1989)

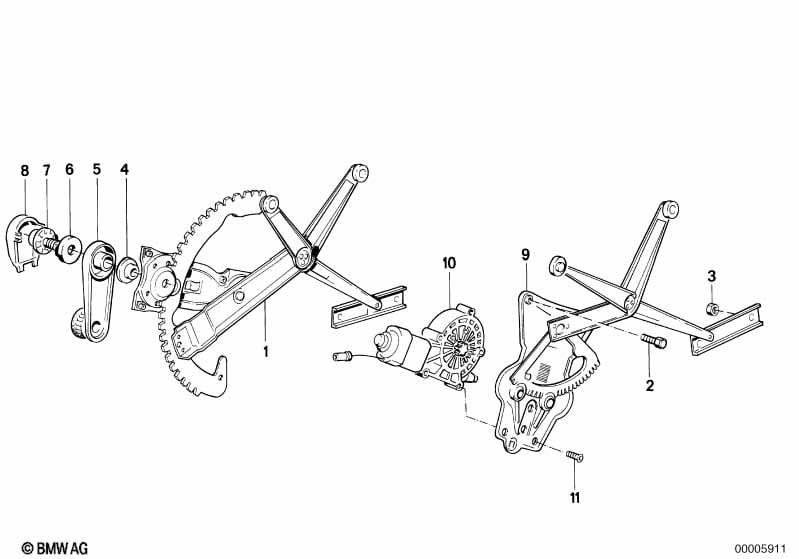

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter front left | 1 | 03/1988 | 51321932393 | $82.64 | Shop at ECS Tuning | ||||
| 01 | Window lifter front right | 1 | 03/1988 | 51321932394 | $82.64 | ENDED | Shop at ECS Tuning | |||
| 02 | Hex bolt with washer | M6X12-U1-8.8 | X | 03/1988 | 07119904517 | $0.36 | Shop at ECS Tuning | |||
| 03 | Hex nut with plate | M6 ZNT | X | 03/1988 | 07149156628 | $0.25 | Shop at ECS Tuning | |||
| 04 | Stop disk | 2 | 03/1988 | 51322460567 | Shop at ECS Tuning | |||||
| 05 | Window crank | 2 | 03/1988 | 51321904507 | $18.81 | Shop at ECS Tuning | ||||
| 06 | Base | 2 | 03/1988 | 51321904509 | $2.62 | ENDED | Shop at ECS Tuning | |||
| 07 | Torx-bolt with washer | ISA M5X10 | 2 | 03/1988 | 54121907282 | $0.89 | ENDED | Shop at ECS Tuning | ||
| 08 | Cover | SCHWARZ | 2 | 03/1988 | 51321906497 | $1.77 | Shop at ECS Tuning | |||
| 09 | Electr.window lifter front left | 1 | 03/1988 | 51321965077 | $105.16 | Shop at ECS Tuning | ||||
| 09 | Electr.window lifter front right | 1 | 03/1988 | 51321965078 | $105.16 | Shop at ECS Tuning | ||||
| 10 | Electr.drive left | 1 | 03/1988 | 51331380853 | $276.61 | Shop at ECS Tuning | ||||
| 10 | Electr.drive right | 1 | 03/1988 | 51331380854 | $276.61 | ENDED | Shop at ECS Tuning | |||
| 11 | Countersunk head screw | 3 | 03/1988 | 51371952879 | $0.80 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
