Vent window for BMW 3 Series E21 320 (1977)

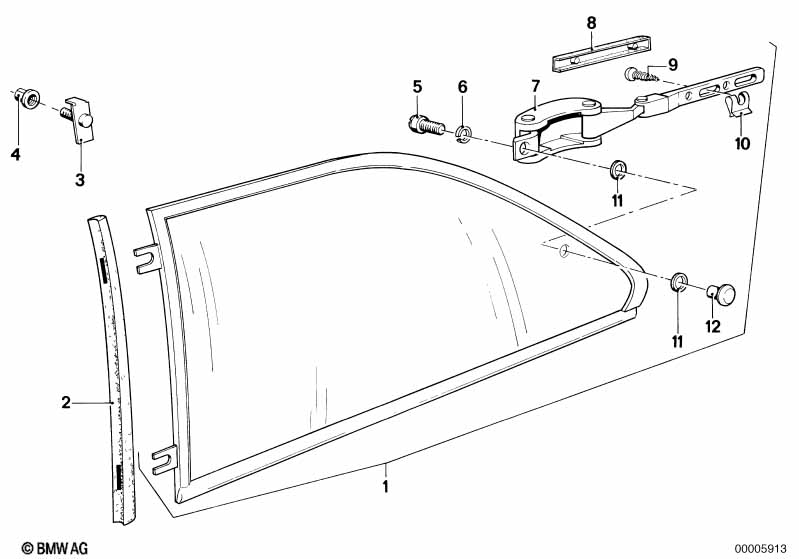

This Vent window technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vent window clear left | 1 | 03/1981 | 51361826871 | $371.49 | Shop at ECS Tuning | ||||
| 01 | Vent window clear right | 1 | 03/1981 | 51361826872 | ENDED | Shop at ECS Tuning | ||||
| 01 | Vent window green left | 1 | 03/1981 | 51361846491 | $263.57 | ENDED | Shop at ECS Tuning | |||
| 01 | Vent window green right | 1 | 03/1981 | 51361846492 | $263.57 | Shop at ECS Tuning | ||||
| 02 | Gasket | 2 | 51361826969 | $3.93 | Shop at ECS Tuning | |||||
| 03 | Clamping bolt | 4 | 51361824925 | $1.13 | ENDED | Shop at ECS Tuning | ||||
| 04 | Self-locking hex nut | M6 | 4 | 07147153450 | $0.47 | Shop at ECS Tuning | ||||
| 05 | Fillister head screw | M5X8 | 2 | 07119907623 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Spring washer | B5 | 2 | 07119933060 | $0.11 | Shop at ECS Tuning | ||||
| 07 | Hinge | 2 | 51361826810 | $38.93 | ENDED | Shop at ECS Tuning | ||||
| 08 | Covering cap | 2 | 51361826818 | $0.65 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fillister head self-tapping screw | ST4,8X16 Z2 | 4 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 10 | Plug-in nut | M5 | 4 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 11 | Gasket | 4 | 51367040572 | $0.19 | Shop at ECS Tuning | |||||
| 12 | Nut | 2 | 51367041561 | $7.77 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
