Door window lifting mechanism front for BMW 5 Series E12 528i (1981)

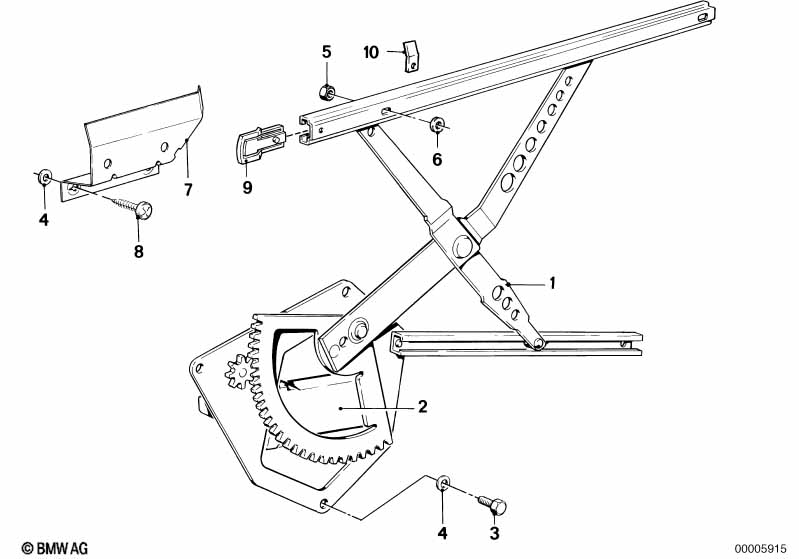

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Electr.window lifter front left | 1 | 08/1978 | 51331868829 | $102.56 | Shop at ECS Tuning | ||||
| 01 | Electr.window lifter front right | 1 | 08/1978 | 51331868830 | $102.56 | Shop at ECS Tuning | ||||
| 02 | Electr.drive left | 1 | 08/1978 | 51331369787 | $354.79 | ENDED | Shop at ECS Tuning | |||
| 02 | Electr.drive right | 1 | 08/1978 | 51331369788 | $296.86 | ENDED | Shop at ECS Tuning | |||
| 03 | Hex bolt | M6X12-8.8-ZNNIV | 8 | 08/1978 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 04 | Washer | A6,4-ZNNIV SI | X | 08/1978 | 07119904202 | Shop at ECS Tuning | ||||
| 05 | Hex nut | M6-8-ZNS3 | 4 | 08/1978 | 07129904876 | $0.16 | Shop at ECS Tuning | |||
| 05 | Self-locking hex nut | M6 ZNNIV SI | 4 | 08/1978 | 07147575163 | $0.25 | Shop at ECS Tuning | |||
| 06 | Rubber washer | 8 | 08/1978 | 51185480151 | $0.57 | Shop at ECS Tuning | ||||
| 07 | Covering right | 1 | 08/1978 | 51331871620 | ENDED | Shop at ECS Tuning | ||||
| 08 | Fillister head self-tapping screw | ST6,3X13 | 2 | 08/1978 | 07119906791 | $0.25 | ENDED | Shop at ECS Tuning | ||
| 09 | Sliding piece | 2 | 08/1978 | 51321871969 | $1.75 | Shop at ECS Tuning | ||||
| 10 | Holder | 4 | 08/1978 | 51321882677 | $2.45 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E12 528i Door window lifting mechanism front?
- This technical diagram illustrates the Door window lifting mechanism front within the Vehicle trim group for the 5 Series E12 528i produced during 1981. It provides a detailed exploded view of the components, identifying key parts such as the Electr.window lifter front left (Part #51331868829).
- Which models use the hardware listed in this Door window lifting mechanism front?
- The hardware and components featured in the Door window lifting mechanism front are specific to the 5 Series E12 528i produced during 1981. These technical specifications ensure that parts like the Electr.window lifter front left (51331868829) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism front assembly?
- Each item in the Door window lifting mechanism front corresponds to the numbered list below the illustration. For the 5 Series E12 528i, you can identify the Electr.window lifter front left by locating its position on the schematic, which then links to the official BMW part number 51331868829 for the Vehicle trim section.
