Front window guide for BMW 6 Series E24 635CSi (1989)

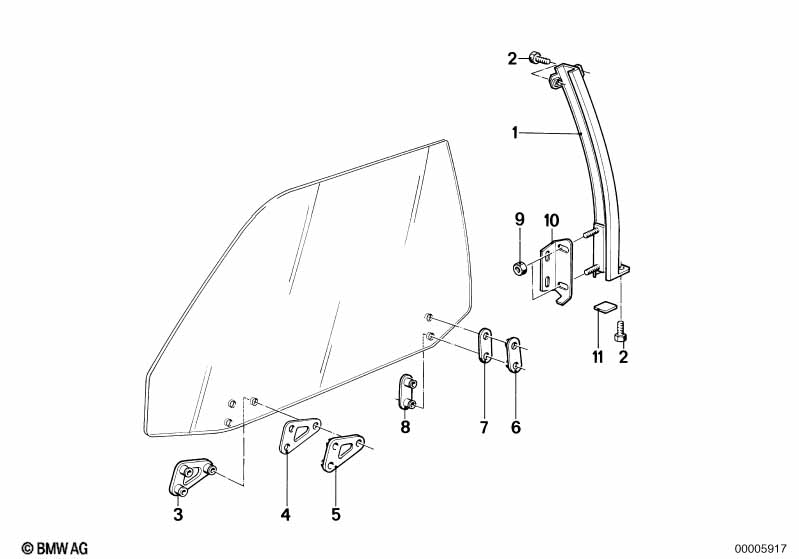

This Front window guide technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 635CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front left window guide | 1 | 03/1982 | 51331888041 | $142.68 | Shop at ECS Tuning | ||||
| 01 | Front right window guide | 1 | 03/1982 | 51331888042 | $142.68 | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M6X12-U2-8.8 | X | 03/1982 | 07119904459 | $0.65 | Shop at ECS Tuning | |||
| 03 | Bracket left | 1 | 03/1982 | 51331888031 | $9.73 | Shop at ECS Tuning | ||||
| 03 | Bracket right | 1 | 03/1982 | 51331888032 | $9.73 | Shop at ECS Tuning | ||||
| 04 | Base | 2 | 03/1982 | 51331888030 | $2.68 | ENDED | Shop at ECS Tuning | |||
| 05 | Housing bottom left | 1 | 03/1982 | 51331888035 | $2.78 | Shop at ECS Tuning | ||||
| 05 | Housing bottom right | 1 | 03/1982 | 51331888036 | $2.84 | Shop at ECS Tuning | ||||
| 06 | Holder | 2 | 03/1982 | 51331888037 | $7.08 | Shop at ECS Tuning | ||||
| 07 | Base | 2 | 03/1982 | 51331888039 | $1.90 | Shop at ECS Tuning | ||||
| 08 | Base | 2 | 03/1982 | 51331888040 | $1.90 | Shop at ECS Tuning | ||||
| 09 | Self-locking hex nut | M6 | X | 03/1982 | 51417053138 | $0.38 | Shop at ECS Tuning | |||
| 10 | Bracket left | 2 | 03/1982 | 51331862781 | $3.67 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| 10 | Bracket right | 2 | 03/1982 | 51331862782 | $3.70 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Cap | 1 | 03/1982 | 51211847767 | $0.43 | ENDED | Shop at ECS Tuning | |||
| 11 | Stopper | 4 | 03/1982 | 51321869219 | $0.65 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
