Window guide, rear for BMW 6 Series E24 633CSi (1979)

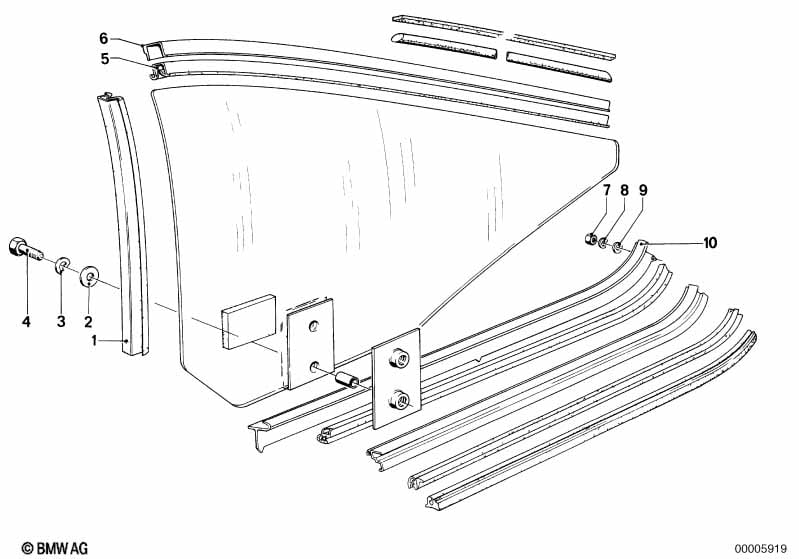

This Window guide, rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left window guide | 1 | 51361886969 | $26.53 | Shop at ECS Tuning | |||||
| 01 | Right window guide | 1 | 51361886970 | $26.53 | Shop at ECS Tuning | |||||
| 02 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 03 | Spring washer | B6 | 4 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Hex bolt | M6X16-8.8-ZNS3 | 4 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 05 | Left rear window guide | 1 | 51361839497 | $72.53 | ENDED | Shop at ECS Tuning | ||||
| 05 | Rear right window guide | 1 | 51361839498 | $70.77 | ENDED | Shop at ECS Tuning | ||||
| 06 | Guide rail rear left | 1 | 51361843927 | $16.22 | Shop at ECS Tuning | |||||
| 06 | Guide rail rear right | 1 | 51361843928 | $16.22 | Shop at ECS Tuning | |||||
| 07 | Hex nut | M4-A2-70 | 8 | 07119922854 | Shop at ECS Tuning | |||||
| 08 | Spring washer | B4 | 8 | 07119933034 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Washer | 9X4,3X0,8-200HV | 8 | 07119904205 | $0.07 | Shop at ECS Tuning | ||||
| 10 | Waist rail trim strip, left rear | SCHWARZ | 1 | 51311961663 | $122.07 | Shop at ECS Tuning | ||||
| 10 | Waist rail trim strip, right rear | SCHWARZ | 1 | 51311961664 | $122.07 | ENDED | Shop at ECS Tuning | |||
| 10 | Waist rail trim strip, left rear | CHROM | 1 | 51361839237 | $68.99 | Shop at ECS Tuning | ||||
| 10 | Waist rail trim strip, right rear | CHROM | 1 | 51361839238 | $68.99 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
