Door window lifting mechanism rear for BMW 6 Series E24 633CSi

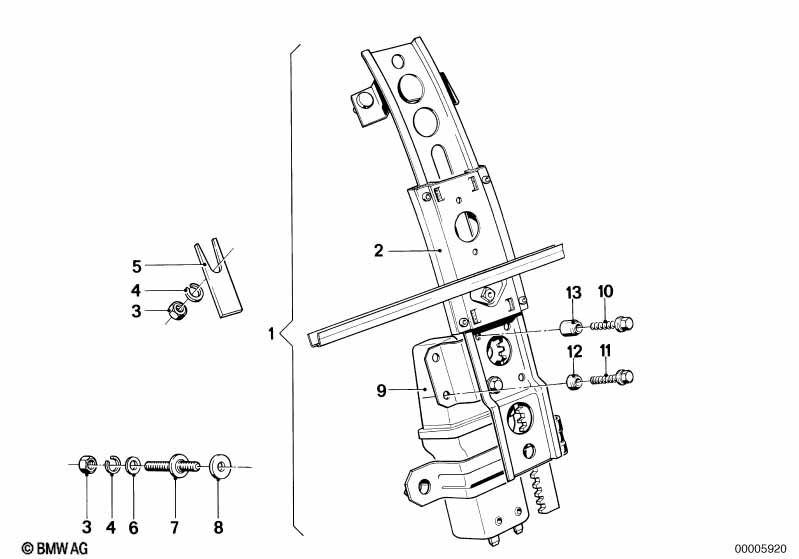

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 6 Series E24 633CSi. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter rear left | 1 | 51371839483 | ENDED | Shop at ECS Tuning | |||||
| 01 | Window lifter rear right | 1 | 51371839484 | ENDED | Shop at ECS Tuning | |||||
| 02 | Window lifter rear left | 1 | 51371874605 | $298.79 | Shop at ECS Tuning | |||||
| 02 | Window lifter rear right | 1 | 51371874606 | $298.79 | Shop at ECS Tuning | |||||
| 03 | Hex nut | M8-8-ZNS3 | 8 | 04/1989 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 03 | Hex nut | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 04 | Wave washer | 8,4X15-ZNS3 | 8 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Spring washer | B8 | 8 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 05 | Washer | 0,5MM | 1 | 51341823676 | ENDED | Shop at ECS Tuning | ||||
| 05 | Washer | 1,0MM | 1 | 51341823677 | $0.20 | Shop at ECS Tuning | ||||
| 05 | Washer | 2,0MM | 1 | 51341823678 | $0.28 | ENDED | Shop at ECS Tuning | |||
| 06 | Washer | 8,4X16X1,6-ZNNV | 4 | 07119907030 | Shop at ECS Tuning | |||||
| 07 | Grub screw | 4 | 51326754380 | $2.62 | ENDED | Shop at ECS Tuning | ||||
| 08 | Washer | 8,4X24X2-ZNS3 | 4 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 09 | Electr.drive left | 1 | 51371369251 | $524.35 | Shop at ECS Tuning | |||||
| 09 | Electr.drive right | 1 | 51371369252 | $524.35 | Shop at ECS Tuning | |||||
| 10 | Lock bolt | M6X25 | 4 | 51371860172 | $1.04 | ENDED | Shop at ECS Tuning | |||
| 11 | Lock bolt | M6X12 | 2 | 51331860173 | $4.74 | ENDED | Shop at ECS Tuning | |||
| 12 | Spacer bush | L=4,8MM | 2 | 51371860208 | $1.81 | ENDED | Shop at ECS Tuning | |||
| 13 | Spacer bush | L=12,8MM | 4 | 51371860207 | $1.84 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 6 Series E24 633CSi Door window lifting mechanism rear?
- This technical diagram illustrates the Door window lifting mechanism rear within the Vehicle trim group for the 6 Series E24 633CSi. It provides a detailed exploded view of the components, identifying key parts such as the Window lifter rear left (Part #51371839483).
- Which models use the hardware listed in this Door window lifting mechanism rear?
- The hardware and components featured in the Door window lifting mechanism rear are specific to the 6 Series E24 633CSi. These technical specifications ensure that parts like the Window lifter rear left (51371839483) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism rear assembly?
- Each item in the Door window lifting mechanism rear corresponds to the numbered list below the illustration. For the 6 Series E24 633CSi, you can identify the Window lifter rear left by locating its position on the schematic, which then links to the official BMW part number 51371839483 for the Vehicle trim section.
