Window guide, rear for BMW 7 Series E23 733i (1981)

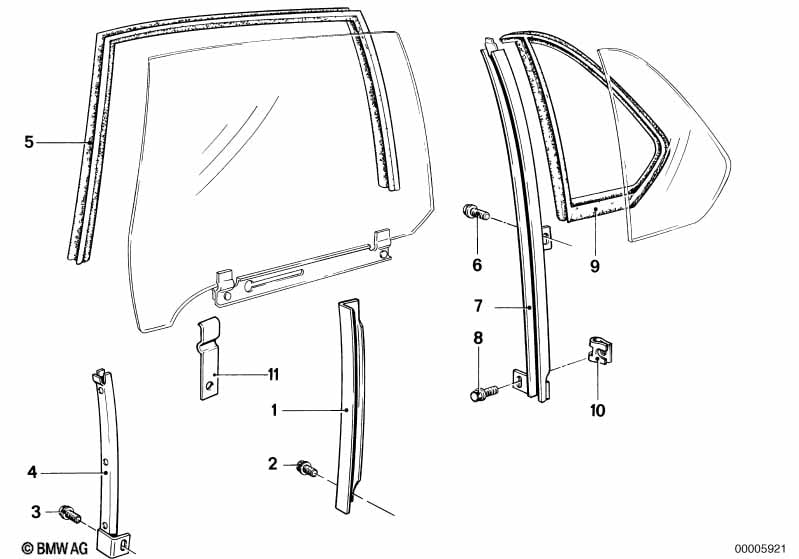

This Window guide, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Track rail | 1 | 51321846496 | $7.72 | ENDED | Shop at ECS Tuning | ||||
| 02 | Hex bolt with washer | M6X12-U2-8.8 | 4 | 07119904459 | $0.65 | Shop at ECS Tuning | ||||
| 03 | Hex bolt with washer | M6X16-U1-8.8 | 2 | 07119904524 | $0.25 | Shop at ECS Tuning | ||||
| 04 | Guide rail front left | 1 | 51341850481 | $6.64 | ENDED | Shop at ECS Tuning | ||||
| 04 | Guide rail front right | 1 | 51341850482 | $6.64 | Shop at ECS Tuning | |||||
| 05 | Left window guide | 1 | 51341921513 | $100.69 | Shop at ECS Tuning | |||||
| 05 | Right window guide | 1 | 51341921514 | $100.69 | Shop at ECS Tuning | |||||
| 06 | Hex bolt with washer | M6X16-Z4-2 | 2 | 07119915024 | $1.89 | Shop at ECS Tuning | ||||
| 07 | Guide rail rear left | 1 | 51341886911 | $90.95 | Shop at ECS Tuning | |||||
| 07 | Guide rail rear right | 1 | 51341886912 | $90.95 | Shop at ECS Tuning | |||||
| 08 | Hex bolt with washer | M6X16-SB-Z3-2 | 2 | 07119915022 | $0.30 | Shop at ECS Tuning | ||||
| 09 | Sealing frame left | 1 | 12/1982 | 51341849681 | $30.97 | Shop at ECS Tuning | ||||
| 09 | Sealing frame right | 1 | 12/1982 | 51341849682 | $21.84 | ENDED | Shop at ECS Tuning | |||
| 10 | Nut holder | 2 | 51161813920 | $1.45 | ENDED | Shop at ECS Tuning | ||||
| 11 | Holder | 8 | 51321882677 | $2.45 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
