Door window lifting mechanism rear for BMW 7 Series E23 733i (1984)

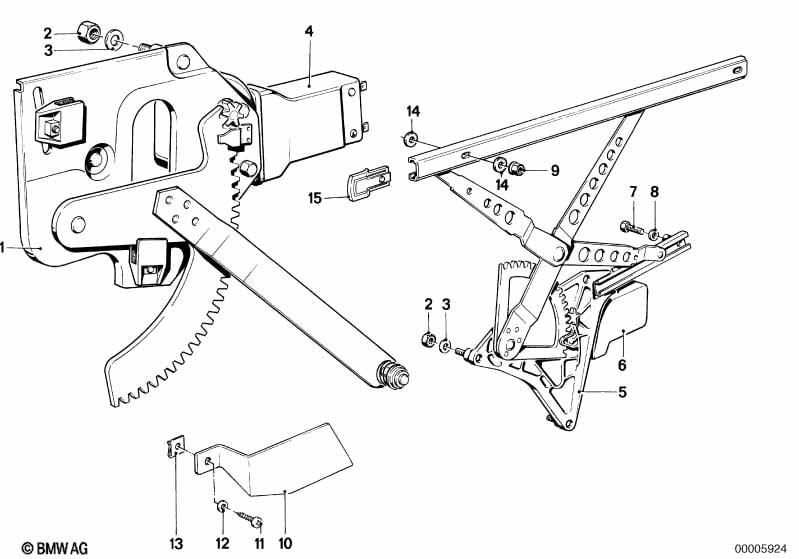

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1984.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Hex nut | M6-8-ZNNIV SI | 6 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Washer | A6,4-ZNNIV SI | 6 | 07119904202 | Shop at ECS Tuning | |||||
| 05 | Electr.window lifter rear left | 1 | 01/1979 | 51351868191 | ENDED | Shop at ECS Tuning | ||||
| 05 | Electr.window lifter rear right | 1 | 01/1979 | 51351868192 | $157.00 | Shop at ECS Tuning | ||||
| 06 | Electr.drive left | 1 | 01/1984 | 51331375395 | $322.52 | ENDED | Shop at ECS Tuning | |||
| 07 | Hex bolt | M6X12-8.8-ZNNIV | X | 01/1979 | 07119905524 | $0.27 | Shop at ECS Tuning | |||
| 08 | Washer | A6,4-200HV-ZNS3 | X | 01/1979 | 07119903791 | $0.11 | Shop at ECS Tuning | |||
| 09 | Self-locking hex nut | M6 | X | 01/1979 | 51417053138 | $0.38 | Shop at ECS Tuning | |||
| 10 | Covering left | 1 | 01/1979 | 51351867951 | ENDED | Shop at ECS Tuning | ||||
| 10 | Covering right | 1 | 01/1979 | 51351867952 | ENDED | Shop at ECS Tuning | ||||
| 11 | Fillister head self-tapping screw | ST4,8X13 | 2 | 01/1979 | 07119907786 | $0.11 | Shop at ECS Tuning | |||
| 12 | Washer | 10X5,3X1-200 HV | 2 | 01/1979 | 07119904206 | Shop at ECS Tuning | ||||
| 12 | Washer | 5.3-140 HV-ZNS | 2 | 01/1979 | 07119936439 | $0.40 | Shop at ECS Tuning | |||
| 13 | Body nut | ST 4,8-4-ZNS3 | 2 | 01/1979 | 07129904224 | $0.11 | Shop at ECS Tuning | |||
| 14 | Rubber washer | X | 51185480151 | $0.57 | Shop at ECS Tuning | |||||
| 15 | Sliding piece | 2 | 51321871969 | $1.75 | Shop at ECS Tuning |
