Front window guide for BMW 5 Series E12 525 (1981)

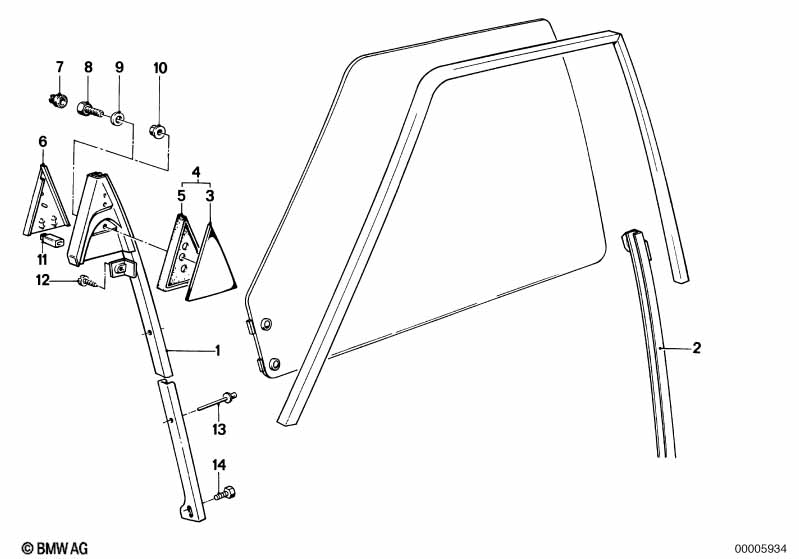

This Front window guide technical drawing provides a detailed breakdown of the assembly for the 5 Series E12 525. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1981.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide rail front left | 1 | 08/1979 | 41511874781 | $41.81 | ENDED | Shop at ECS Tuning | |||
| 01 | Guide rail front right | 1 | 08/1979 | 41511874782 | $39.44 | Shop at ECS Tuning | ||||
| 02 | Guide rail rear left | 1 | 08/1978 | 51321939843 | $21.47 | Shop at ECS Tuning | ||||
| 02 | Guide rail rear right | 1 | 08/1978 | 51321939844 | $21.47 | Shop at ECS Tuning | ||||
| 03 | Corner moulding, left | 1 | 08/1979 | 03/1984 | 51321925891 | $25.11 | ENDED | Shop at ECS Tuning | ||
| 03 | Corner moulding, right | 1 | 08/1979 | 03/1984 | 51321925892 | $26.68 | ENDED | Shop at ECS Tuning | ||
| 04 | Corner moulding, left | 1 | 08/1979 | 51321925891 | $25.11 | ENDED | Shop at ECS Tuning | |||
| 04 | Corner moulding, right | 1 | 08/1979 | 51321925892 | $26.68 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket left | 1 | 08/1979 | 03/1984 | 51321873645 | ENDED | Shop at ECS Tuning | |||
| 05 | Gasket right | 1 | 08/1979 | 03/1984 | 51321873646 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering left | 1 | 08/1979 | 51321874787 | $6.54 | Shop at ECS Tuning | ||||
| 06 | Covering right | 1 | 08/1979 | 51321874788 | $6.54 | Shop at ECS Tuning | ||||
| 10 | Hex nut with plate | M5 | 2 | 08/1979 | 63259128043 | $0.72 | Shop at ECS Tuning | |||
| 11 | Plug connection female | 4 | 08/1979 | 51321876540 | $0.30 | Shop at ECS Tuning | ||||
| 12 | Fillister head self-tapping screw | ST3,9X13 | 4 | 08/1978 | 07147202502 | $0.26 | Shop at ECS Tuning | |||
| 13 | Rivet | 4-3A | 4 | 08/1979 | 07129948753 | $0.12 | Shop at ECS Tuning | |||
| 14 | Hex bolt with washer | M6X18-Z4-2 | 4 | 08/1978 | 07119915028 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
