Front window guide for BMW 3 Series E30 325i (1989)

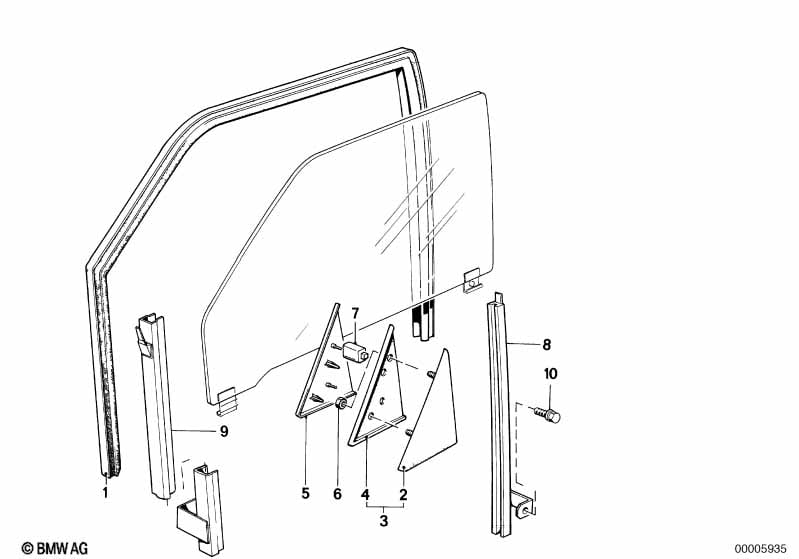

This Front window guide technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1989.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left One-piece window guide | 1 | 51321904781 | $51.54 | Shop at ECS Tuning | |||||
| 01 | Right One-piece window guide | 1 | 51321904782 | $51.54 | Shop at ECS Tuning | |||||
| 05 | Covering left | 1 | 51321904517 | $15.98 | Shop at ECS Tuning | |||||
| 05 | Covering right | 1 | 51321904518 | $15.98 | Shop at ECS Tuning | |||||
| 06 | Hex nut with plate | M5 | 1 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 07 | Plug connection female | 4 | 51321874407 | $21.24 | ENDED | Shop at ECS Tuning | ||||
| 08 | Guide rail rear left | 1 | 51321919647 | $43.28 | Shop at ECS Tuning | |||||
| 08 | Guide rail rear right | 1 | 51321919648 | $43.28 | Shop at ECS Tuning | |||||
| 09 | Guide rail front left | 1 | 51321945507 | $26.41 | Shop at ECS Tuning | |||||
| 09 | Guide rail front right | 1 | 51321945508 | $26.41 | Shop at ECS Tuning | |||||
| 10 | Hex bolt with washer | M6X12-U1-8.8 | 2 | 07119904517 | $0.36 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E30 325i Front window guide?
- This technical diagram illustrates the Front window guide within the Vehicle trim group for the 3 Series E30 325i produced during 1989. It provides a detailed exploded view of the components, identifying key parts such as the Left One-piece window guide (Part #51321904781).
- Which models use the hardware listed in this Front window guide?
- The hardware and components featured in the Front window guide are specific to the 3 Series E30 325i produced during 1989. These technical specifications ensure that parts like the Left One-piece window guide (51321904781) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front window guide assembly?
- Each item in the Front window guide corresponds to the numbered list below the illustration. For the 3 Series E30 325i, you can identify the Left One-piece window guide by locating its position on the schematic, which then links to the official BMW part number 51321904781 for the Vehicle trim section.
